5106773-1

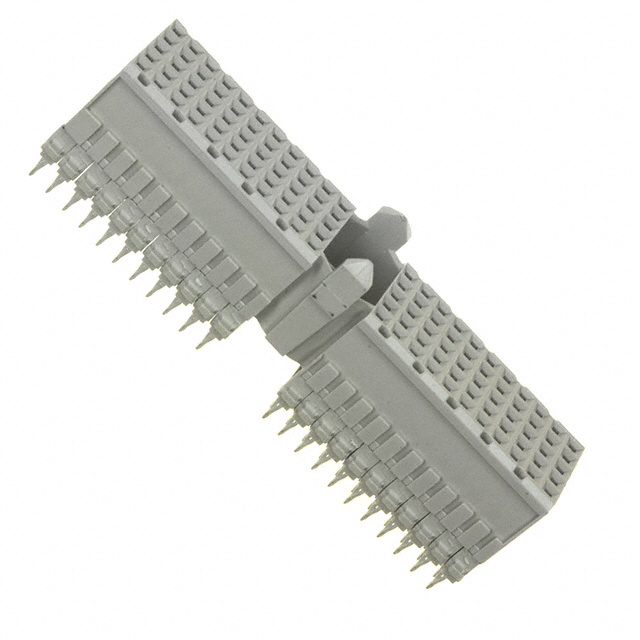

AMP FROM TE CONNECTIVITY  5106773-1  连接器, Z-PACK Series, 硬公制 HM, 110 触点, 插座, 2 mm, 压配合 新

Z-PACK™ HM A 型底板

Z-PACK™ HM 2mm A 型底板直角和垂直安装管座及插座连接器用于 2mm HM 接口，提供自由板或固定板印刷电路板安装，带接地复位屏蔽选项、操作引脚柱触点选项和各种 CompactPCI 标识配置，有关详细信息，请参见附件数据表。 这些 Z-PACK™ 硬公制 A 型底板连接器具有 UL 94V-0 聚酯外壳，带多用途中心配接对准且具有标准串扰装置，除了库存号 739-0981 外，它提供串扰减少装置。

**Additional Data**

---

**Stock Number** | **Manufacturer Part Numbe**r | **Description** | **No of Rows** | **Contact Configuration** | **CompactPCI Designation** | **Mounting Style** | **Rows Loaded** | **Shielding Type**

739-0981 | 5100623-1 | Type A 110 Way Right Angle Receptacle | 5 | ACTION PIN Post, Signal | No | Free Board, AMP Standard Option 1 | C, D, E, A, B | Ground Return Shielding, Upper

782-5159 | 352332-1 | Type A 154 Way Vertical Header | 5 + 2 | Signal | P1 Hot Swap | Free Board, Front Mating

.

* **Level 1 | Z, F, D, C, B, A, E | Ground Return Shielding

864-3295 | 106015-1 | Type A 110 Way Right Angle Header | 5 | ACTION PIN Post, Signal | No | Free Board, Front Mating

.

* **Level 1 | - | None

864-3377 | 1857994-1 | Type A 110 Way Right Angle Receptacle | 5 | Compliant Pin, Signal | J1, J4 | Free Board | A, B, C, D, E | Ground Return Shielding, Upper

864-3573 | 6345055-1 | Type A 110 Way Right Angle Header | 5 | Signal | No | Fixed Board, Front Mating

.

* **Level 2 | - | None

864-3826 | 100668-1 | Type A 154 Way Vertical Header | 5 + 2 | ACTION PIN Post, Signal | No | Fixed Board, Front Mating

.

* **Level 1 | E, Z, F, D, C, B, A | Ground Return Shielding

864-3882 | 5100668-1 | Type A 154 Way Vertical Header | 5 + 2 | ACTION PIN Post, Signal | No | Fixed Board, Front Mating

.

* **Level 1 | D, C, B, A, Z, E, F | Ground Return Shielding

718-9147 | 100143-1 | Type A 110 Way Vertical Header | 5 | ACTION PIN Post, Signal | No | Fixed Board, Front Mating

.

* **Level 1 | B, A, C, E, D | None

712-1356 | 100147-1 | Type A 110 Way Right Angle Receptacle | 5 | ACTION PIN Post, Signal | Yes | Free Board, AMP Standard Option 1 | B, A, C, E, D | None

719-6697 | 106773-1 | Type A 110 Way Vertical Receptacle | 5 | Signal | No | Fixed Board, Free Board | - | None

712-1365 | 188834-1 | Type A 154 Way Vertical Header | 5 + 2 | Signal | P1/P4 | Fixed Board, Front Mating

.

* **Level 1 | E, F, Z, D, C, B, A | Ground Return Shielding

680-7804 | 352068-1 | Type A 110 Way Right Angle Receptacle | 5 | ACTION PIN Post, Signal | J1, J4 | Free Board | E, D, C, A, B | Ground Return Shielding, Upper

340-1018 | 5100143-1 | Type A 110 Way Vertical Header | 5 | ACTION PIN Post, Signal | No | Fixed Board, Front Mating

.

* **Level 1 | E, D, C, B, A | None

340-1046 | 5100147-1 | Type A 110 Way Right Angle Receptacle | 5 | Signal | Yes | Free Board, AMP Standard Option 1 | A, B, C, D, E | None

712-1387 | 5106015-1 | Type A 110 Way Right Angle Header | 5 | Signal | Yes | Free Board, AMP Standard Option 1 | A, B, C, D, E | None

657-1536 | | Type A 110 Way Vertical Receptacle | 5 | Signal | No |   | - | None
