KSZ8081RNACA TR

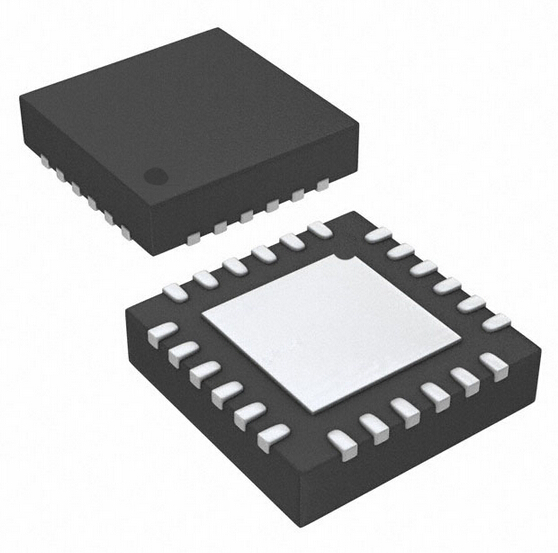

MICREL SEMICONDUCTOR  KSZ8081RNACA TR  以太网控制器, 100 Mbps, IEEE 802.3, 3.135 V, 3.465 V, QFN, 24 引脚

The is a single-supply 10Base-T/100Base-TX Ethernet Physical-layer Transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair UTP cable. This is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core and by offering 1.8/2.5/3.3V digital I/O interface support. It offers the reduced media independent interface RMII for direct connection to RMII-compliant MACs in Ethernet processors and switches. As the power-up default, this uses a 25MHz crystal to generate all required clocks, including the 50MHz RMII reference clock output for the MAC. This version takes in the 50MHz RMII reference clock as the power-up default.

.

RMII back-to-back mode support for a 100Mbps copper repeater

.

MDC/MDIO management interface for PHY register configuration

.

Programmable interrupt output

.

LED outputs for link and activity status indication

.

On-chip termination resistors for differential pairs

.

Baseline wander correction

.

Auto-negotiation to automatically select highest linkup speed 10/100Mbps/duplex half/full

.

Power-down and power-saving modes

.

LinkMD TDR-based cable diagnostics to identify faulty copper cabling

.

Parametric NAND tree support for fault detection between chip I/Os and board
