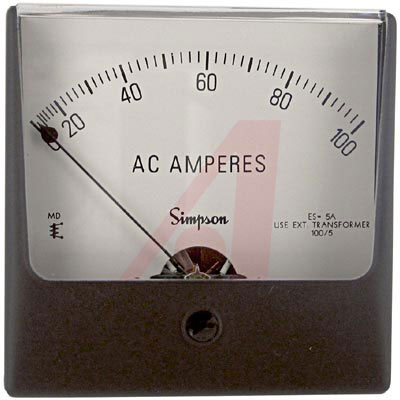

Ammeter, 0-100ACA, + 2%; 3-1/2in.; 2%; 2.73in.; 0.128in.; -20 to degC
**Features:
**
* Clear Acrylic Window for Wide Angle Visibility**
**
* Rugged Black Plastic Case**
**
* Black Spade Pointer for Easy Distant Reading**
**
* Optional Behind-Panel Mounting Bezel Kit**
Specifications:
**
* Accuracy: ±2% F.S. Iron-Vane, ±3% F.S. Rectified**
**
* Tracking: ±3%**
**
* Response Time: 1.5 Seconds Maximum**
**
* Operating Temperature: –4°F to +149°F –20°C to +65°C
Allied Electronics:
Ammeter, 0-100ACA, + 2%; 3-1/2 in.; 2%; 2.73 in.; 0.128 in.; -20 to degC
工作温度Min -20 ℃
工作温度 -20℃ ~ 65℃
Accuracy ±2% %
Approvals RU
Brand/Series 1357 Series
Case Material High Density Black Plastic
Connection Type Stud
Cut Out, Panel 2.79 Dia. in.
Depth 1.22 in.
Diameter, Body 2.73 in.
Diameter, Mounting Hole 0.128 in.
Dimensions 3.25" L x 3.25" H
Dimensions, Cutout, Inches 2.79 Dia. in.
Display Type Analog
Function Ammeter
Impedance 0.008 Ohms @ 60 Hz
Material, Casing Plastic
Measuring Range 0 to 100 A ac
Primary Type Electromechanical
Range, Measurement 0 to 100 AAC
Repeatability 2%
Size 3-1⁄2 in.
Size, Thread 1⁄4-28
Special Features Extended Operating Temp
Standards UL Recognized
Temperature Range -20 to +65 °C
Temperature, Opening, Maximum +65 °C
Temperature, Operating -20 to +65 °C
Temperature, Operating, Minimum -20 °C
Time, Response 1.5 sec. Max.
Type Electronic
RoHS标准 RoHS Compliant
