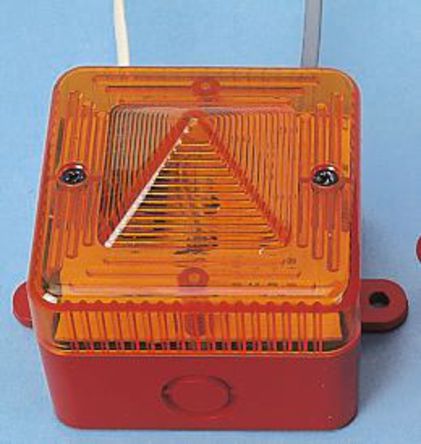

YOTELFLASH 5 ORANGE

型号： YOTELFLASH 5 ORANGE

制造商： AE & T

描述：Telephone tone sirens Yotel sirens, Flashtel beacons and Yotelflash sound / light handsets help to amplify analogue telephone tones without the need for relays. Simple, quick and immediate installation. Choice of three different siren sounds for personalisation. Separate power supplies for siren and beacon. Designed for permanent operation; duty factor 100%. The red and green wires must be connected to the siren. **Sirens:** |   ---|--- Supply voltage: | 36 → 80 Vac directly though the telephone line Sound output: | 100 or 106 dB Enclosure: | Self-extinguishing ABS **Beacon:** |   Supply voltage: | 230 Vac Light output: | 5 joules Optical cover: | polycarbonate Protection index: | IP 55 Operating temperature: | –25 → +55°C ref. | dimensions mm |   |   | mounting | Ø mm ---|---|---|---|---|--- AE & T | H | L* | P | centre | hole Flashtel | 87 | 115 | 87 | 98 | 6.3 Yotel4 | 87 | 115 | 75 | 98 | 6.3 Yotel5 | 101 | 130 | 103 | 111 | 6.3 Yotelflash4 | 174 | 115 | 87 | 98 | 6.3 Yotelflash5 |
