2SD0968GOL

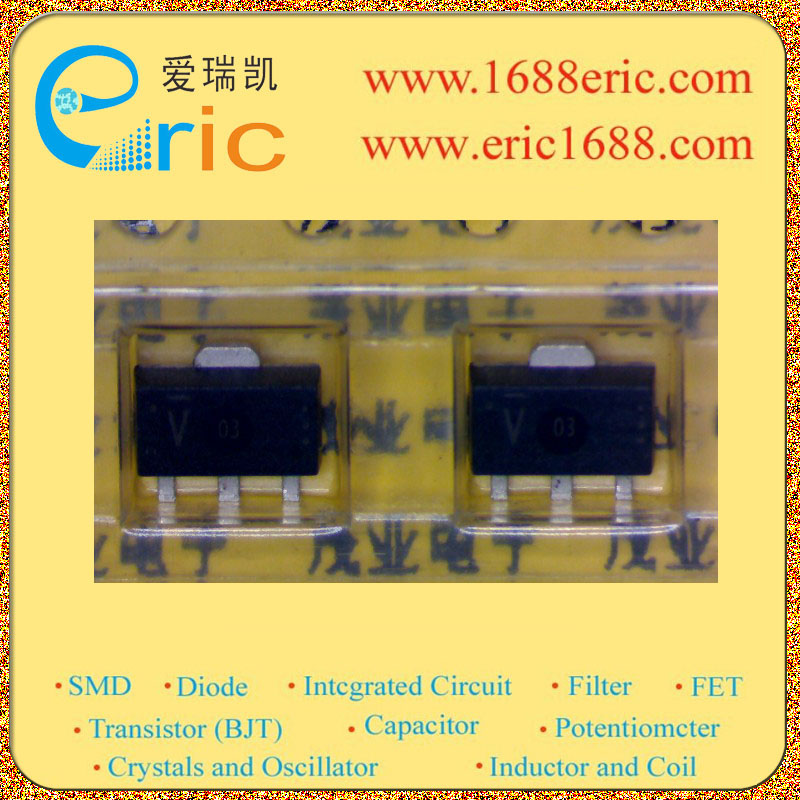

2SD0968GOL NPN三极管 120V 500mA/0.5A 120MHz 130~330 200mV/0.2V SOT-89/SC-62 marking/标记 V 低频驱动放大

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| 120V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| 120V 集电极连续输出电流ICCollector CurrentIC| 500mA/0.5A 截止频率fTTranstion FrequencyfT| 120MHz 直流电流增益hFEDC Current GainhFE| 130~330 管压降VCE（sat）Collector-Emitter Saturation Voltage| 200mV/0.2V 耗散功率PcPower Dissipation| 1W Description & Applications| Silicon NPN epitaxial planar type For low-frequency driver amplification ■ Features • High collector-emitter voltage Base open VCEO • Large collector power dissipation PC • Mini power type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing 描述与应用| NPN硅外延平面型 低频驱动放大 ■特点 •高集电极 - 发射极电压（基本打开）VCEO •大集电极功耗PC •小型功率型封装，允许精简的设备， 通过自动插入带包装盒包装
