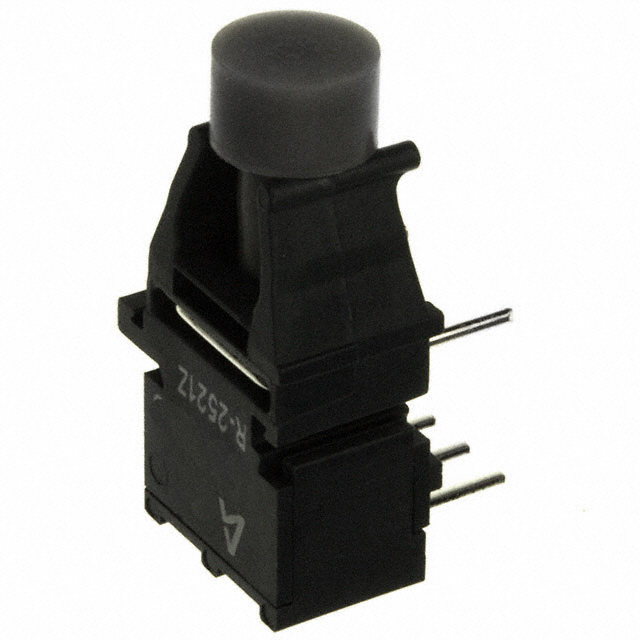

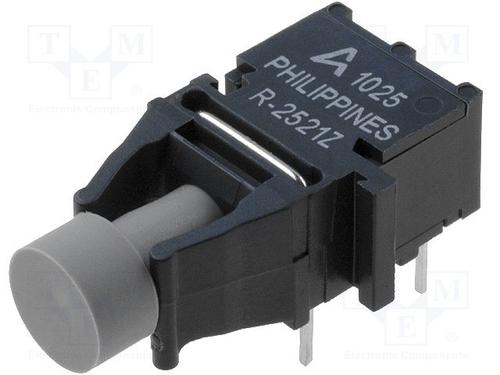

HFBR-2521Z

HFBR-2521Z 管装

Description

The Versatile Link series is a complete family of fiber optic link components for applications requiring a low cost solution. The HFBR-0500Z series includes transmitters, receivers, connec tors and cable specified for easy design. This series of compo  nents is ideal for solving problems with voltage isolation/insula tion, EMI/RFI immunity or data security. The optical link design is simpli fied by the logic compat ible receivers and complete specifi-cations for each component. The

key optical and electrical parameters of links configured with the HFBR-0500Z family are fully guaranteed from 0° to 70°C.

Features

•  RoHS-compliant

•  Low cost fiber optic components

•  Enhanced digital links: dc-5 MBd

•  Extended distance links up to 120 m at 40 kBd

•  Low current link: 6 mA peak supply current

•  Horizontal and vertical mounting

•  Interlocking feature

•  High noise immunity

•  Easy connectoring: simplex, duplex, and latching connectors

•  Flame retardant

•  Transmitters incorporate a 660 nm red LED for easy visibility

•  Compatible with standard TTL circuitry
