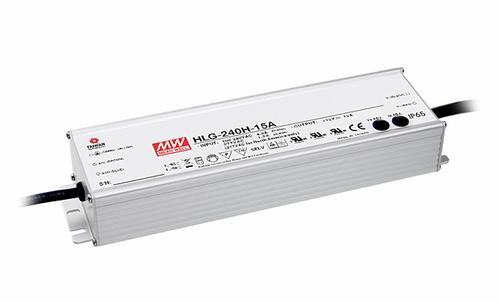

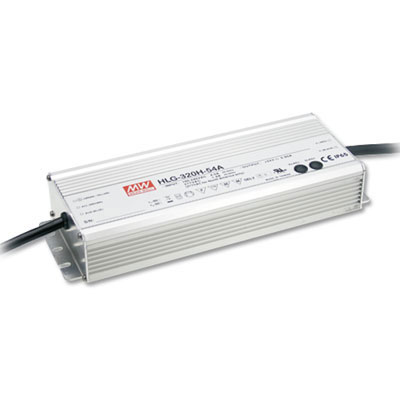

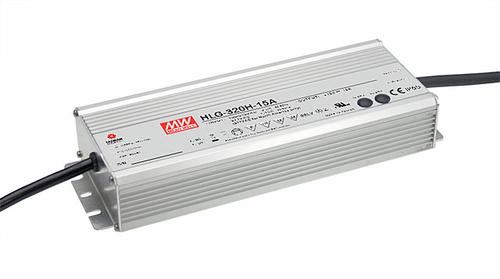

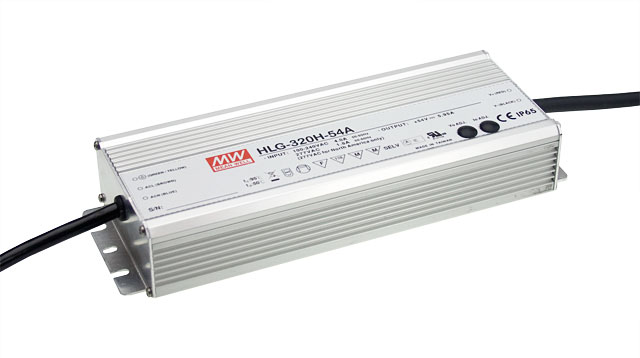

LED Driver CC, CV 265W 11-22A Linear 6-13.5VDC 90-305VAC PFC Non-Dimming Internal Pot Adj Vo & Io IP67 Metal Enclosure
22A 10.8 ~ 13.5V 恒定电流，电压 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
LED DVR CCCV ACDC 10.8-13.5V 22A
艾睿:
AC/DC Power Supply Single-OUT 12V 22A 264W 5-Pin
Allied Electronics:
Power Supply; AC-DC; 12V; 22A; 100-305V In; Sealed; PFC; LED Driver; HLG-320H Series
Jameco:
320W Single Output Switching LED Power Supply
安富利:
LED DRVR Module 1-CH IP67 13.5V 22A
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr/Volt - 264W - Adj: 12 Vdc @ 22,000mA 22.0 A - Dim: No
CDI:
LED Driver CC, CV 265W 11-22A Linear 6-13.5Vdc 90-305Vac PFC Non-Dimming Internal Pot Adj Vo & Io IP67 Metal Enclosure
额定功率 265 W
输出接口数 1
输出电压 12 VDC
输出电流 22 A
通道数 1
输出功率 264 W
隔离电压 3.75 kV
输入电压Max 305 VAC
输入电压Min 90 VAC
输入电压DC Max 431 V
输入电压DC Min 127 v
输入电压AC Max 305 v
输入电压AC Min 90 v
输出电压Max 13.5 V
输出电压Min 10.8 V
输出电流Max 22000 mA
输出电流Min 11 A
输入电流Min 3.5 A
输出功率Max 264 W
工作温度Max 60 ℃
工作温度Min -40 ℃
输入电压 100VAC ~ 305VAC
安装方式 Chassis
引脚数 5
封装 Metal Enclosure
长度 225.2 mm
宽度 90 mm
高度 43.8 mm
封装 Metal Enclosure
工作温度 -40℃ ~ 90℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
