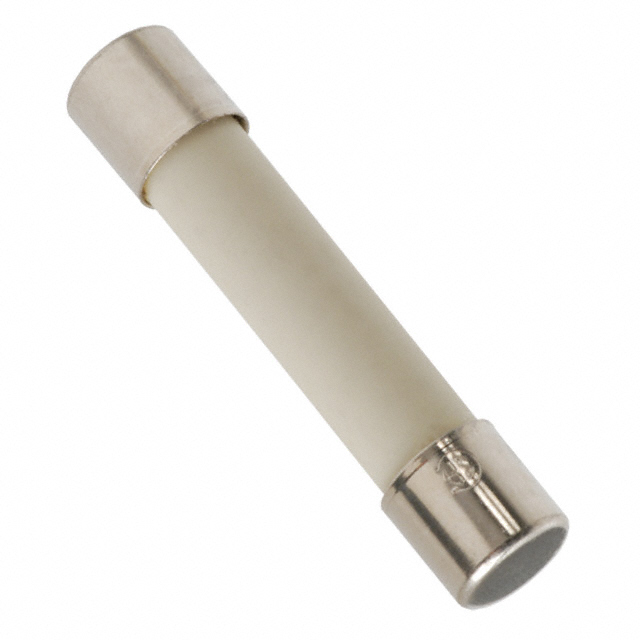

三百二十六分之三百二十五系列无铅3AB ， SLO- Blo®保险丝 325/326 Series Lead-Free 3AB, Slo-Blo® Fuse
A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 2. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0326002.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 31.75 mm long with a diameter of 6.35 mm. Its fuse is made from ceramic.
触点电镀 Nickel
额定电压DC 125 V
额定电压AC 250 V
额定电流 2 A
电阻 120.95 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0326002.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0325002.MXP 力特 | 完全替代 | 0326002.MXP和0325002.MXP的区别 |
0326002.VXP 力特 | 完全替代 | 0326002.MXP和0326002.VXP的区别 |
0326002.HXP 力特 | 类似代替 | 0326002.MXP和0326002.HXP的区别 |
