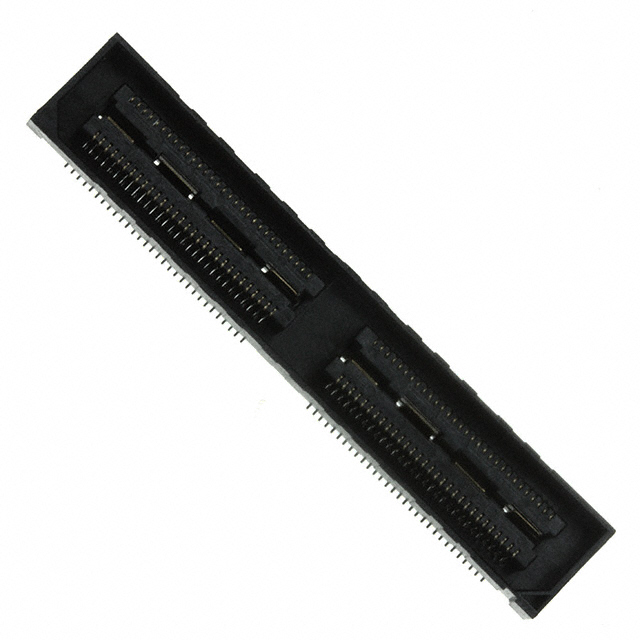

SAMTEC QSH-060-01-L-D-A 堆叠板连接器, 双排, QSH系列, 120 触点, 插座, 0.5 mm, 表面安装 , 2 排
QSH Series High Speed Ground Plane Socket
These Board to Board QSH Series SMT 0.5 mm pitch High Speed Ground Plane Sockets have 0.25 μm Gold plated contacts and Ground Plane with Matte Tin plated Tails. This range of Board- to-Board QSH Series SMT 0.5 mm pitch High Speed Ground Plane Sockets have 3.5 mm body heights which gives a stack height of 5 mm when mated with the corresponding QTH Series Headers. The design of this range of Board to Board QSH Series SMT 0.5 mm pitch High Speed Ground Plane Sockets includes Alignment Pins.
### 注
For mating QTH Series Headers see stock number 767-8745 typical.
### 0.5mm 节距 -
触点数 120
极性 Female
触点电镀 Phosphor Bronze
额定电压AC 125 V
额定电流 1 A
排数 2
针脚数 120
拔插次数 100
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 125 VAC
额定电压 125 VAC
安装方式 Surface Mount
引脚间距 500 µm
长度 41.3 mm
宽度 7.24 mm
高度 3.25 mm
引脚间距 500 µm
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
QSH-060-01-L-D-A Samtec 申泰电子 | 当前型号 | 当前型号 |
QSH-060-01-F-D-A 申泰电子 | 完全替代 | QSH-060-01-L-D-A和QSH-060-01-F-D-A的区别 |
QSH-060-01-L-D-A-TR 申泰电子 | 完全替代 | QSH-060-01-L-D-A和QSH-060-01-L-D-A-TR的区别 |
