NTMFS6H801NT1G 编带

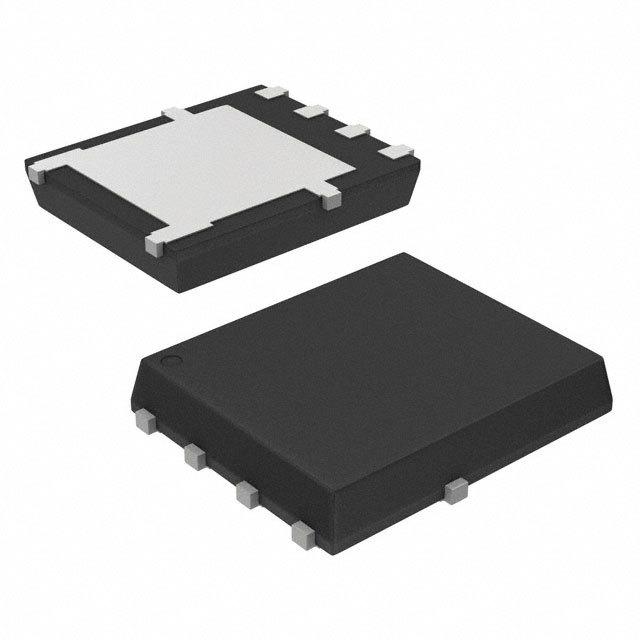

Commercial Power MOSFET in a 5x6mm flat lead package designed for compact and efficient designs and including high thermal performance.
Features | | Benefits
---|---|---
| | | | |
| |
| |
| |
| |
针脚数 5
漏源极电阻 0.0023 Ω
耗散功率 3.8 W
阈值电压 4 V
漏源极电压Vds 80 V
上升时间 74 ns
输入电容Ciss 4120pF @40VVds
下降时间 19 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 3800 mW
安装方式 Surface Mount
引脚数 5
封装 SO-8FL
封装 SO-8FL
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Battery management and protection, Switching power supplies, 48V systems, Power switches High Side Driver, Low Side Driver, H-Bridges etc.
RoHS标准
含铅标准 Lead Free
