16 MMCX-50-1-1/111OE

HUBER & SUHNER  16 MMCX-50-1-1/111OE  射频/同轴连接器, MMCX同轴, 直角插头, 焊接, 50 ohm, RG178B, RG196A, 铍铜

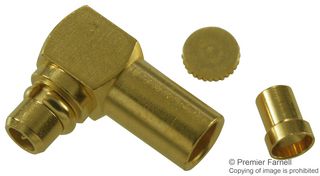

The is a right angle crimped Coaxial Cable Connector with gold plated brass body, brass outer contact, bronze center contact, PFA/PTFE insulator and brass crimp ferrule, suitable cable type RG178B/U, RG196A/U. The miniature microax connector are intended to use where the smallest dimensions have to be achieved whose reliable snap-on coupling mechanism ensures that the electrical parameters are consistently reproduced, due to its non-slotted outer contact provides a low RF-leakage.

.

1 Dielectric size

.

50R Impedance

.

* -55 to 155°C Operating temperature range
