HMC1027BG

Digital Crosspoint 13x13 14.2Gbps 169Pin BGA Tray

Product Details

The HMC1027 is an extremely low-power, high-performance, fully programmable asynchronous 13x13 crosspoint switch operating with data rates up to 14.2 Gbps. The HMC1027 consists of a programmable input equalizer, a 13x13 switch, and a de-emphasis based programmable output driver. The 13x13 switch is fully non-blocking and it allows any input to be routed to any output, any combination of outputs, or broadcast to all outputs. The HMC1027 performs both receive equalization EQ and transmit de-emphasis DE on all input and output channels to compensate signal impairments due to inter-symbol interference ISI caused by wide variety of transmission media and channel lengths. The input equalizer can be bypassed for short links to further reduce the overall power dissipation. The 13th channel is identical to the other 12 channels and it can be either used as the 13th channel or signal inject and monitor for debugging purposes during the prototyping stage.

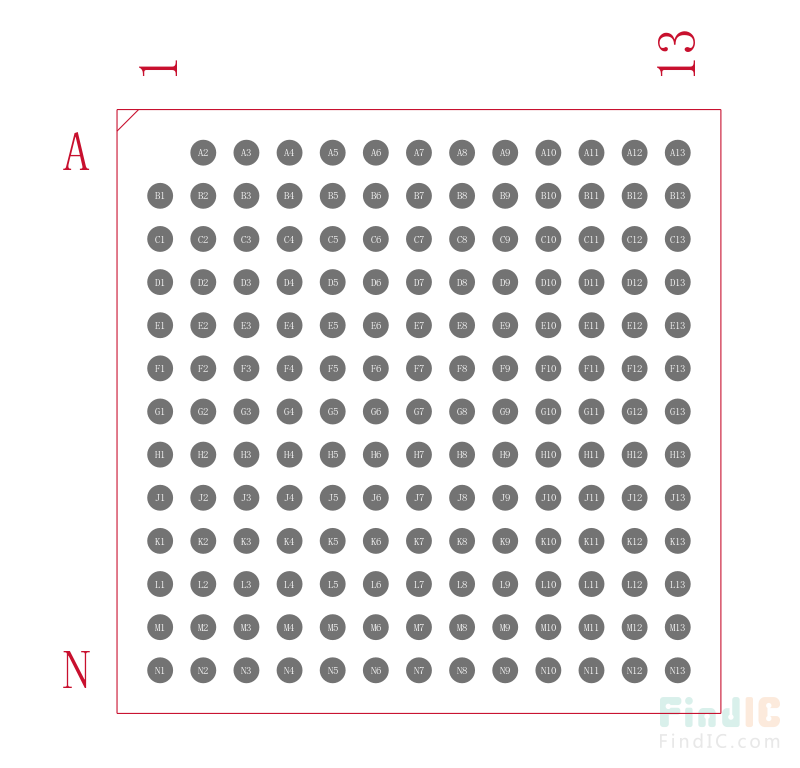

All high-speed differential inputs and outputs of the HMC1027 are Current Mode Logic CML and terminated on-chip with 50 ohms to the positive supply, 1.8 V or 2.5 V, and may be DC or AC coupled. The inputs and outputs of the HMC1027 can be operated either differentially or single ended. The low-power, high-performance and feature-rich HMC1027 is packaged in a 169 pin and 1 mm ball pitch, 14x14 mm BGA package. The device uses a 2.5 V core supply but the I/O can be operated at 1.8 V supply to reduce the power dissipation to less than 100 mV per channel. The HMC1027 operates over a case temperature range of -40 °C up to 85 °C.

Applications

.

Support SONET OC192, 10Gb#,

8/16G FC, 10G QDR, and 14G FDR IB

.

Signal Conditioning and Distribution for Backplane and Linecards

.

Optical Transport Switch and Protect

.

Redundancy Switching

.

Video Broadcasting

.

FPGA Interfacing

.

Broadband Test and Measurement Equipment

### Features and Benefits

.

Supports Data Rates from DC to 14.2 Gbps

.

Protocol and Data Rate Agnostic

.

Fully Non-Blocking, with Multicast and Broadcast

.

Excellent Crosstalk Immunity >35 dB

.

Data Invert on Both Input and Output Channels

.

Output Squelch Mode

.

Low Latency <380 ps

.

Up to 20 dB Programmable Input Equalization

.

Equalization Bypass Mode for Short Links

.

Programmable Output Amplitude Control:

400 mV to 800 mV
