Electromechanical Relay 18 to 32VDC 120A SPST-NO Panel High Voltage Relay

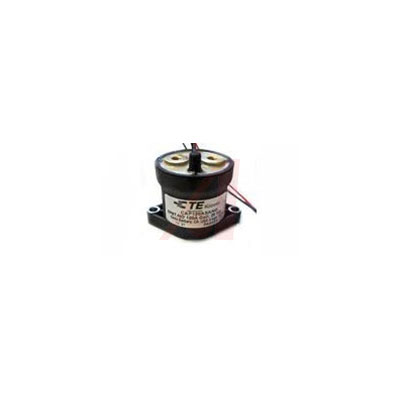

Designed for harsh environments and loads, the new Kilovac CAP120 contactor from TE offers exceptional performance for a device this small and light. A reduced-size version of our popular MAP and CAP series contactors, the CAP120 contactor’s small size and light weight opens up new application possibilities for a 150 A/600 Vdc device. High break levels—1000 A at 400 Vdc and 600 A at 600 Vdc—help increase system flexibility and reliability. CAP120 contactors provide reliable and long-lasting performance in military ground, military and commercial aerospace, and marine applications.
**Hermetically Sealed**
* Suitable for application in harsh and explosive environments
* No contact oxidation over periods of non-use SPACE AND WEIGHT SAVINGS
* Size reduced version of MAP/CAP 100 Series contactors VERSATILE
* Bidirectional switching
* Main contacts not polarity sensitive
* Panel mount
* Not position sensitive: mounts in any orientation
**Efficient**
* Integrated dual-coil electronic “cut-throat” economizer with suppression APPLICATIONS
* Energy storage systems
* Power distribution
* High-current battery systems
* Lithium ion battery systems
* Solar power
