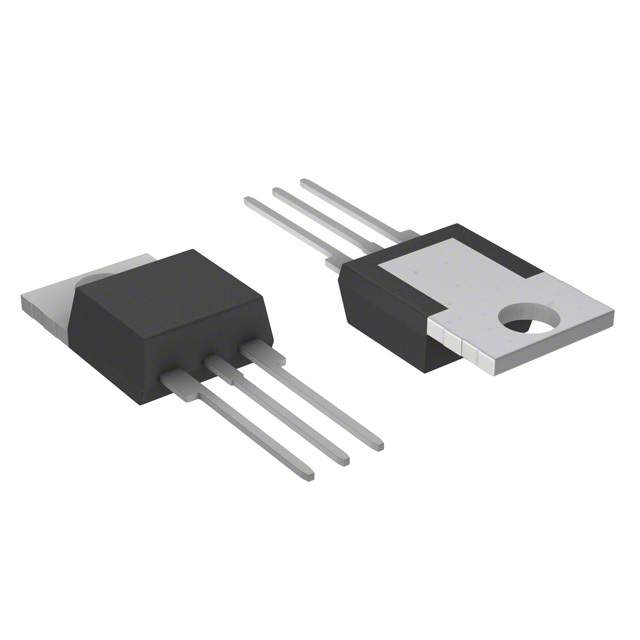

LITTELFUSE Q6015LT 三端双向可控硅, 600 V, 1.5 A, TO-220AB, 167 A
The is a Teccor® internally triggered Quadrac TRIAC designed for AC switching and phase control applications. This Teccor® Thyristor is TRIAC and DIAC in a single package, which saves user expense by eliminating the need for separate TRIAC and DIAC components. It normally operates in quadrants I and III triggered from AC line.
- .
- Glass-passivated junctions
- .
- Surge capability up to 200A
- .
- 600V Voltage rating
额定电压DC 600 V
额定电流 15.0 A
针脚数 3
保持电流 70.0 mA
保持电流Max 70 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Discontinued at Digi-Key
包装方式 Bulk
制造应用 Consumer Electronics, Industrial, Automation & Process Control, HVAC, Safety, Lighting, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
Q6015LT Littelfuse 力特 | 当前型号 | 当前型号 |
Q6015LTTP 力特 | 完全替代 | Q6015LT和Q6015LTTP的区别 |
Q4015LT 力特 | 类似代替 | Q6015LT和Q4015LT的区别 |
