PC 卡连接器I、II 和 III 类 PC 卡均与 PCMCIA 和 JEIDA PC Card 标准兼容。引脚管座和弹出器接受 I、II 和 III 类 PC 卡 提供标准而高度凸起的 68 位置引脚管座，配有通孔和表面安装引线，适用于顶部或底部与主机 PC 板相连 标准 PC 卡极化键控（5 V 和低压） ### 认可UL, CSA### 存储卡连接器提供多个市场领先制造商的多种存储卡和 PCMCIA 卡连接器。 电流额定值 0.5A产品组合表 | | | | | | | ---|---|---|---|---|---|---|--- 应用 | 极数 | 离心度 | 框架 套件 | 68 引脚 插座 | 后面 连接器 | 插头 单位 | 插头 外罩 通用 类型 | 15 | 0.9 | NX1-15T-KT9K | IC1K-68RD-1.27SFA | NX60TB-15SAA9-SP | NX30TA-15PAA | NX-15T-CV | 15 | 0.3 | NX1-15T-KT3K | IC1K-68RD-1.27SF | NX60TB-15SAA3-SP | NX30TA-15PAA | NX-15T-CV | 25 | 0.9 | NX1-25T-KT9K | IC1K-68RD-1.27SFA | NX60TA-25SAA9-SP | NX30TA-25PAA | NX-25T-CV | 25 | 0.3 | NX1-25T-KT3K | IC1K-68RD-1.27SF | NX60TA-25SAA3-SP | NX30TA-25PAA | NX-25T-CV | 32 | 0.9 | NX1-32T-KT9K | IC1K-68RD-1.27SFA | NX60T-32SAA9-SP | NX30TA-32PAA | NX-32TA-CV1 | 32 | 0.3 | NX1-32T-KT3K | IC1K-68RD-1.27SF | NX60TA-32SAA3-SP | NX30TA-32PAA | NX-32TA-CV1 卡 总线 类型 | 15 | 0.9 | NX1BL-15T-KT9B | IC9-68RD-0.635SFA | NX60TB-15SAA9-SP | NX30TA-15PAA | NX-15T-CV | 15 | 0.3 | NX1BL-15T-KT3B | IC9-68RD-0.635SF | NX60TB-15SAA3-SP | NX30TA-15PAA | NX-15T-CV | 25 | 0.9 | NX1BL-25T-KT9B | IC9-68RD-0.635SFA | NX60TA-25SAA9-SP | NX30TA-25PAA | NX-25T-CV | 25 | 0.3 | NX1BL-25T-KT3B | IC9-68RD-0.635SF | NX60TA-25SAA3-SP | NX30TA-25PAA | NX-25T-CV | 32 | 0.9 | NX1BL-32T-KT9B | IC9-68RD-0.635SFA | NX60T-32SAA9-SP | NX30TA-32PAA | NX-32TA-CV1 | 32 | 0.3 | NX1BL-32T-KT3B | IC9-68RD-0.635SF | NX60TA-32SAA3-SP | NX30TA-32PAA | NX-32TA-CV1
PCMCIA 存储卡
PCMCIA 存储卡连接器，可通过推拉动作插拔卡。库存号 718-4714 具有卡导轨，库存号 821-8903 是键控，可接受 3.3V 的低电压卡。
### 认可
UL, CSA
得捷:
CONN PCMCIA CARD PUSH-PULL R/A
欧时:

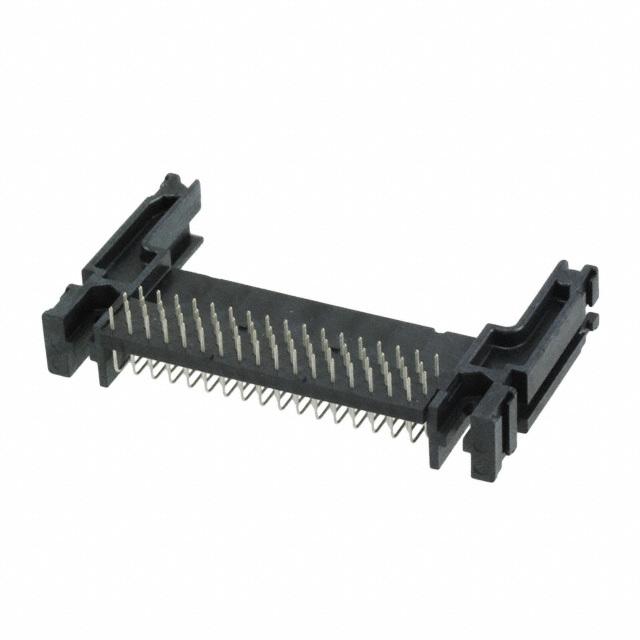

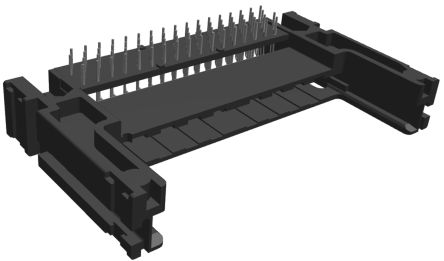

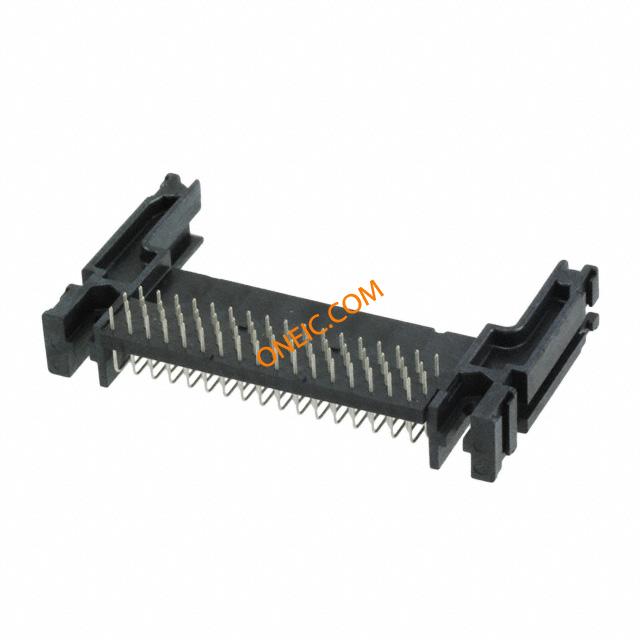

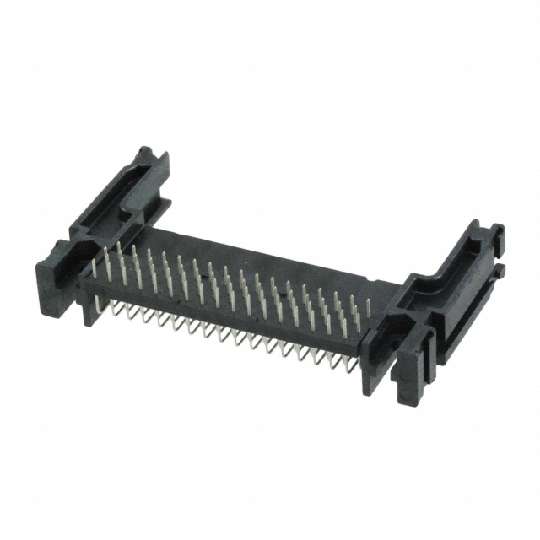

TE Connectivity 5535655 系列 1.27mm节距 68针2行 直角 公 通孔 记忆卡 存储卡连接器 5535655-2
贸泽:
IC 与器件插座 PCMCIA HDR 068P T/H
艾睿:
Have a memory card? You will need this pcmcia 5535655-2 micro SD connector from TE Connectivity to connect it to the circuit or design. This HDR connector&s;s 68 contacts that are made out of brass and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 4-row connector. It has a header type gender. 5535655-2 is housed in liquid crystal polymer. It uses the solder termination method. This product is 61.98 mm long, 9.6 mm tall and 35 mm deep.
安富利:
Conn PCMCIA HDR 68 POS 2.54mm Solder RA Thru-Hole
Chip1Stop:
Conn PCMCIA HDR 68 POS 2.54mm Solder RA Thru-Hole
Verical:
Conn PCMCIA HDR 68 POS 2.54mm Solder RA Thru-Hole Tray
Newark:
# AMP - TE CONNECTIVITY 5535655-2 68 MEMCD HDR RSD T/H TOP LV New
MASTER:
Conn PCMCIA HDR 68 POS 2.54mm Solder RA Thru-Hole Box/Tray
