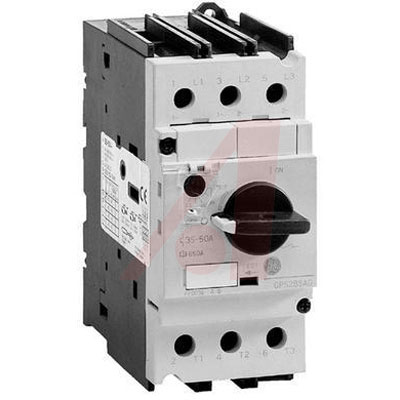

GPS2BSAU

Motor breaker; 30kW; 230÷690VAC; DIN; Overcurrent release:45÷63A

**Imagination at work**

’s Surion IEC motor starters are compact and reliable. They are flexible, quick to install, and available in 45 mm and 55 mm widths.

The GPS1 line spans current ranges from 0.1 A to 32 A for use with motors up to 30 hp at 600 V. The GPS2 series extends this current range to 63 A for use with motors up to and including 50 hp.

**Features**

* Industry Leading Interruption Ratings Up to 50 kAIC at 480 V

* Industry Leading Vibration Resistance 5 G as Standard, 8 G Available with Hold-Down Clips

* Two Compact Frames: 45 mm Width up to 32 A or 55 mm Width Rated to 63 A

* Class 10 Overload Trip Characteristics

* 35 mm DIN Rail Mounting for Time Saving Installation

**Standards/Approvals**

* IEC 60947-1, 60947-2, 60947-4-1

* DIN VDE 0660T 100/101/102

* UL508/CSA - UL508/cULus

* Shipping approvals: RINA, Bureau Veritas, cULus, CE, Lloyd’s Register Veritas Germanischer Lloyd
