NC7SZ08L6X

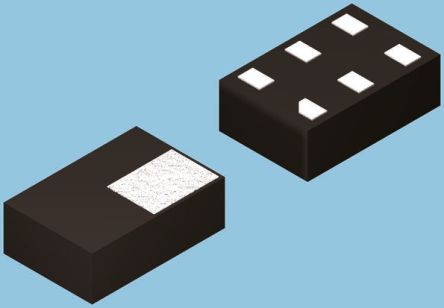

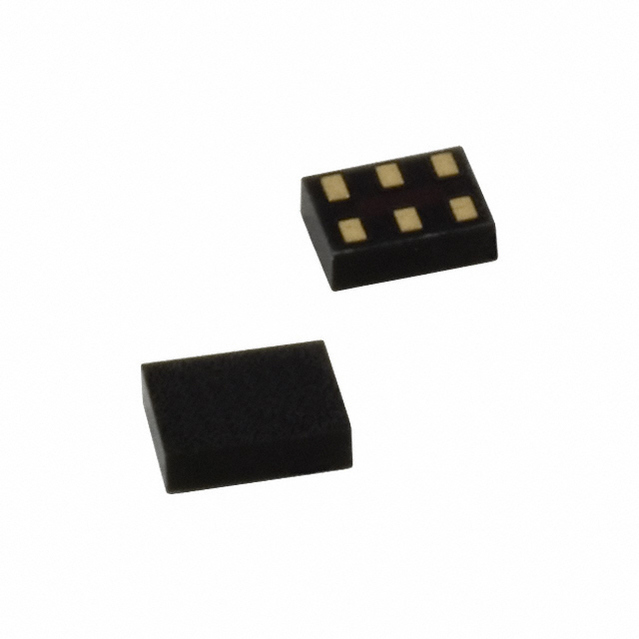

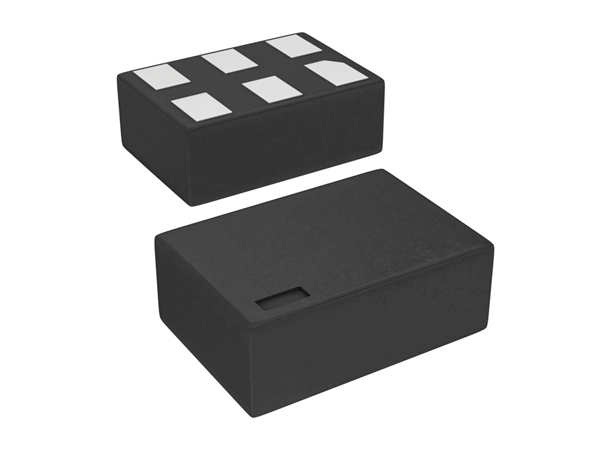

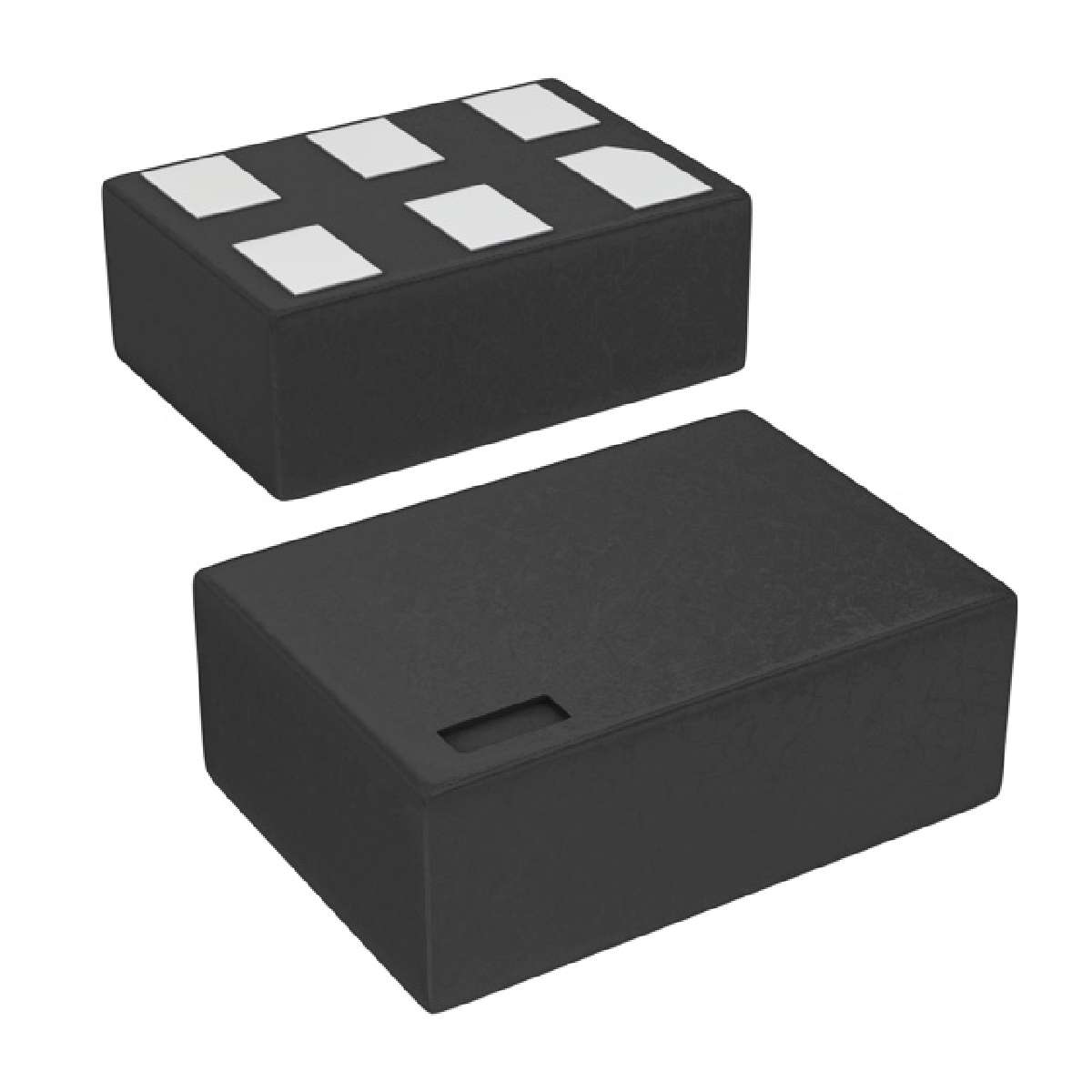

IC 与门 NC7SZ08L6X 6-UFDFN/TSOP6 marking/标记 GG

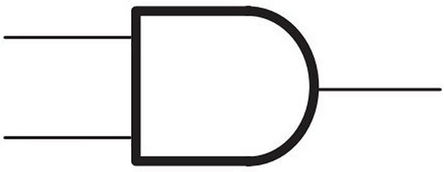

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 2uA 输出高，低电平电流Current - Output High, Low| -32mA，32mA 低逻辑电平Logic Level - Low| 0.1V~0.55V 高逻辑电平Logic Level - High| 1.55V~3.9V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 4.5ns @ 5V，50pF Description & Applications| Features TinyLogic UHS 2-Input AND Gate Space saving SOT23 or SC70 5-lead package Ultra High Speed: tPD 2.7ns typ into 50 pF at 5V VCC High Output Drive: ±24 mA at 3V VCC Broad VCC Operating Range: 1.65V–5.5V Matches the performance of LCX when operated@3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented 描述与应用| 特性 TinyLogicUHS2输入与门 节省空间的SOT23或SC705引线封装 超高速：TPD2.7ns（典型值）为50 pF的5V VCC 高输出驱动器：±24 mA在3V VCC 宽广的VCC工作电压范围：1.65V-5.5V 时的性能相匹配的LCX 运行@3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施
