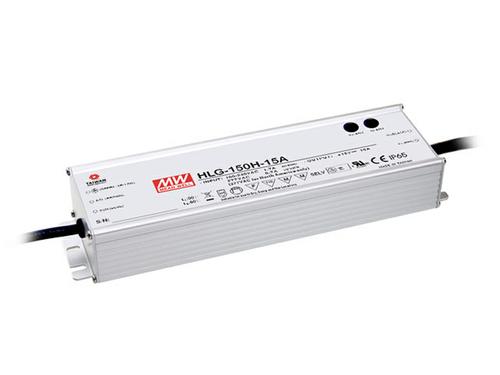

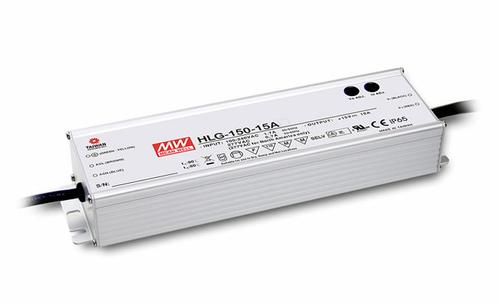

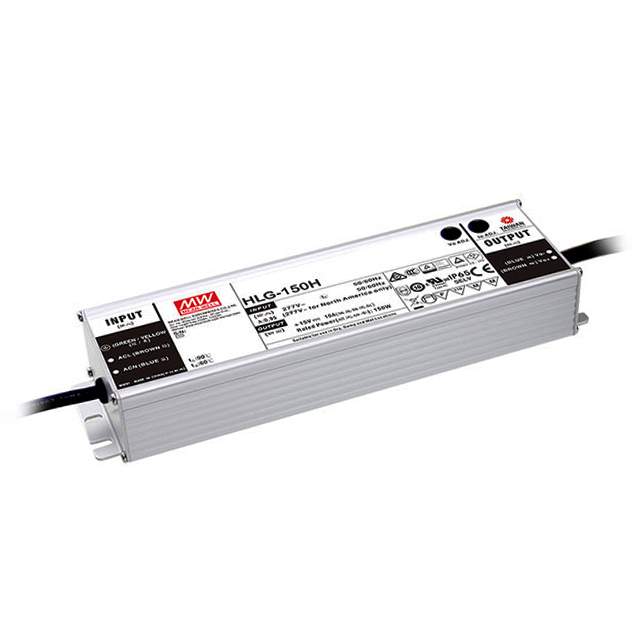

150 W 单组输出 24 V 短路保护 AC/DC 开关电源
Universal AC input / Full range up to 305VAC
Built-in active PFC function
High efficiency up to 94 percent
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function 1-10 Vdc or PWM signal or resistance
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
5 years warranty
额定功率 151.2 W
输出接口数 1
输出电压 24 VDC
输出电流 6.3 A
通道数 1
输出功率 151.2 W
隔离电压 3750 V
输入电压Max 305 VAC
输入电压Min 90 VAC
输入电压DC Max 431 V
输入电压DC Min 127 v
输入电压AC Max 305 v
输入电压AC Min 90 v
输出电压Max 27 V
输出电压Min 22 V
输出电流Max 6300 mA
输出电流Min 3.8 A
输入电流Min 1.7 A
输出功率Max 151.2 W
工作温度Max 90 ℃
工作温度Min -40 ℃
电源电压 90.305VAC, 127.431VDC
输入电压 127VDC ~ 431VDC, 90VAC ~ 305VAC
安装方式 Chassis
引脚数 5
封装 Metal Enclosure
长度 228 mm
宽度 68 mm
高度 38.8 mm
封装 Metal Enclosure
重量 1.15 kg
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409530
