5532447-5

Conn HDI PL 120POS 2.54mm Solder ST Thru-Hole

120 接头，公引脚 通孔 黑色 高密度（HDC，HDI，HPC）

得捷:
CONN HEADER HD 120POS PCB

立创商城:
5532447-5

贸泽:
High Speed / Modular Connectors PIN VERT HDI 3ROW

艾睿:

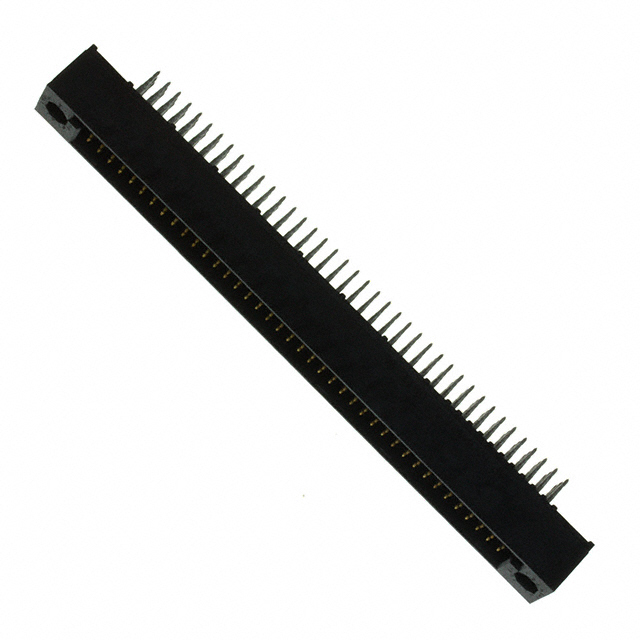

This hdi 5532447-5 backplane connector from TE Connectivity will provide an interface between devices. This PL connector&s;s 120 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a plug type gender. This is a 3-row connector. Its pitch is 2.54 mm. It uses the solder termination method. This product is 120.65 mm long, 11.73 mm tall and 12.19 mm deep. 5532447-5 is housed in black thermoplastic.

安富利:
Conn HDI PL 120 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn HDI PL 120 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  5532447-5  ASSY,PIN,VERTICAL,HDI,LEAD-FRE New

MASTER:
ASSEMBLY, PIN, VERTICAL, HDI, LEAD-FREE, 3 ROW, WITHOUT GUIDE PINS, 6.35 [.250] LONG ACTION PINS

Powell:
AMP-HDI Four Beam & TBC Twin Beam Connectors

Electro Sonic:
ASSY,PIN,VERTICAL,HDI,LEAD-FRE
