HWST603616SS概述

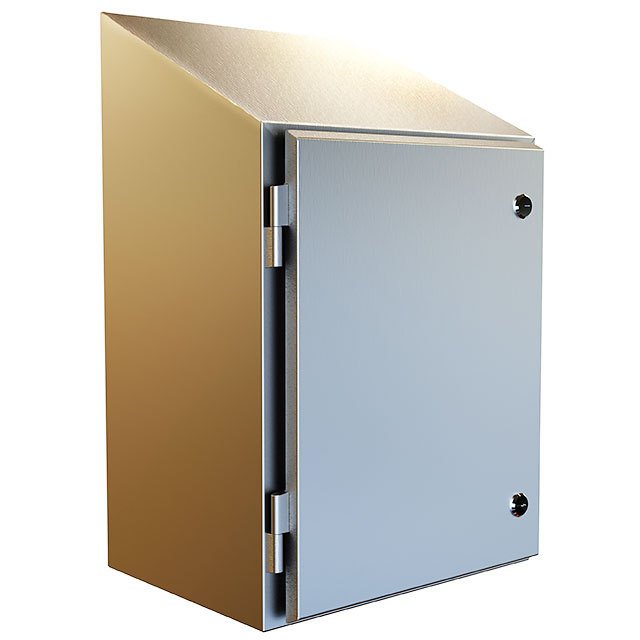

Enclosure; Type 4X; 304 Stainless Steel; Wallmount; Sloped Top; 67.4H x 36W x 16D

* Designed to Enclose Electrical and/or Electronic Equipment and Protect Against Harsh Industrial Environments for Wall Mount Applications

* Sloped Top Prevents Water from Resting on Top and Provides Potential for Controls Mounting

* Unique Hinge Design Allows for Easy Cleaning in Hose-Down Environments

* A Wide Range of Sizes and Practical Accessories Make This Product Line a Complete Package

* Formed 304 or 316L Stainless Steel

* Continuously Welded Seams Ground Smooth

* Door Stiffeners Are Provided Where Required for Increased Strength and Rigidity — Designed to Also Permit Additional Mounting Options

* Formed Lip on Enclosure to Exclude Flowing Liquids and Contaminants

* Door Latch 316 Stainless Steel Quarter Turns Feature the Added Safety of Quarter Turn Slot Requiring Use of Tool for Opening

* Door Hinges 316 Stainless Steel Are Easy to Clean, Provide 180° Opening, Are Easily Removed for Modifications and Are Interchangeable

* Seamless, Poured-In Place Gasket

* Collar Studs Provided for Mounting Inner Panel

* Includes Hardware Kit with Panel Mounting Nuts and Sealing Washers for Wall Mounting Holes

* Bonding Stud Provided on Door and Grounding Stud Installed in Enclosure

* Cover and Enclosure are Natural Stainless Steel with a Smooth Brushed Finish

* UL 508 Type 3R, 4, 4X and 12

* CSA Type 3R, 4, 4X and 12

* NSF — ANSI 169

* Complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529, IP66

HWST603616SS中文资料参数规格
外形尺寸

宽度 914.4 mm

物理参数

颜色 Natural

材质 Stainless Steel

外壳材质 Stainless Steel

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买HWST603616SS
型号: HWST603616SS
制造商: Hammond Manufacturing
描述:Enclosure; Type 4X; 304 Stainless Steel; Wallmount; Sloped Top; 67.4H x 36W x 16D
