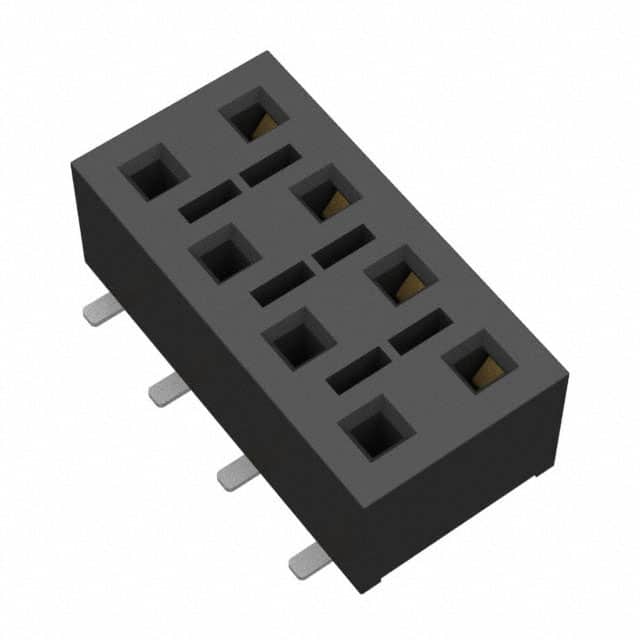

Conn Socket Strip SKT 8POS 2.54mm Solder ST SMD T/R
8 Position Receptacle Connector Surface Mount
欧时:
.100 Tiger Beam Cost-effective Single Be
得捷:
.100 TIGER BEAM SOCKET ASSEMBLY
艾睿:
Samtec brings you their socket strip HLE-104-02-L-DV-K-TR header connector, an important safety tool for protecting your electronic components from accidental damage. This SKT connector&s;s 8 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 4.1 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. HLE-104-02-L-DV-K-TR is housed in black liquid crystal polymer. This product is 10.16 mm long, 3.66 mm tall and 6.6 mm deep.
安富利:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST SMD T/R
Newark:
# SAMTEC HLE-104-02-L-DV-K-TR Board-To-Board Connector, 2.54 mm, 8 Contacts, Receptacle, HLE Series, Surface Mount, 2 Rows
触点数 8
极性 Female
触点电镀 Gold
额定电流 4.1A/触头
排数 2
针脚数 8
额定电流Max 4.1A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 400 VAC
额定电压 400 VAC
安装方式 Surface Mount
高度 3.66 mm
外壳颜色 Black
触点材质 Beryllium Copper
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
HLE-104-02-L-DV-K-TR Samtec 申泰电子 | 当前型号 | 当前型号 |
HLE-104-02-L-DV-TR 申泰电子 | 完全替代 | HLE-104-02-L-DV-K-TR和HLE-104-02-L-DV-TR的区别 |
