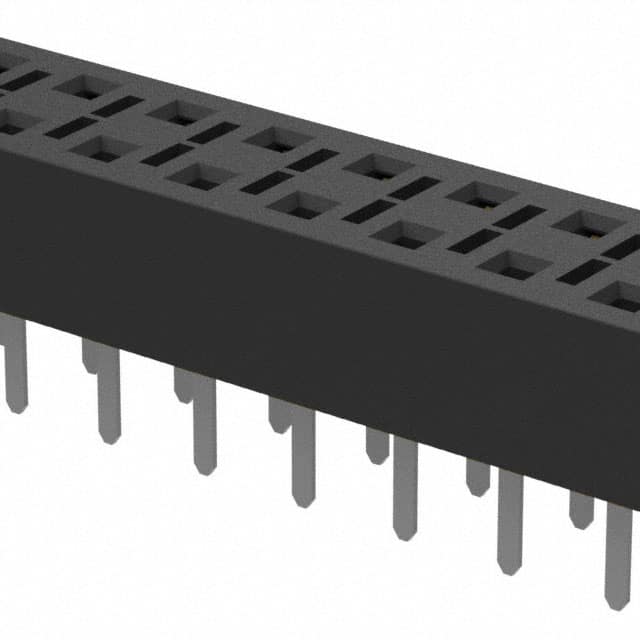

SAMTEC HLE-112-02-L-DV-TE Board-To-Board Connector, 2.54mm, 24Contacts, Receptacle, HLE Series, Through Hole, 2Rows
24 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 24POS 0.1 GOLD PCB
艾睿:
Look no further than the socket strip HLE-112-02-L-DV-TE header connector from Samtec, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 24 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 400 VAC. It has a socket type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 4.1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 30.48 mm long, 3.51 mm tall and 5.08 mm deep. HLE-112-02-L-DV-TE is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
安富利:
Conn Socket Strip SKT 24 POS 2.54mm Solder ST Thru-Hole Tube
Newark:
# SAMTEC HLE-112-02-L-DV-TE Board-To-Board Connector, 2.54 mm, 24 Contacts, Receptacle, HLE Series, Through Hole, 2 Rows
