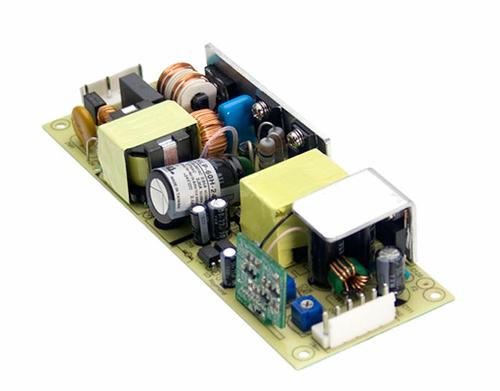

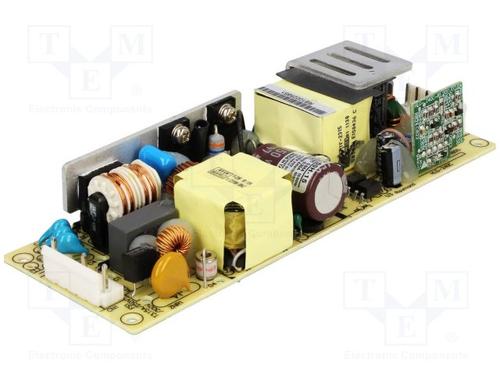

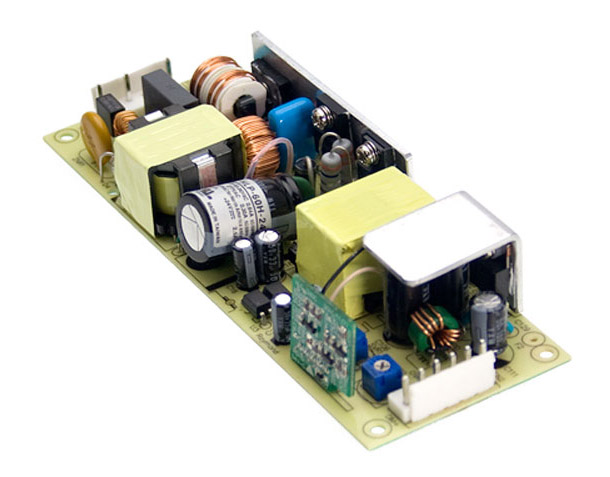

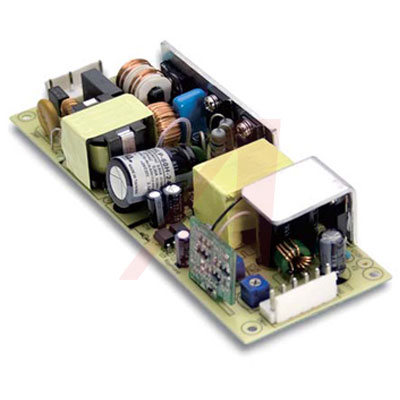

HLP 系列 60.9 W 1.45A 42 V 恒流 LED 电源
Universal AC input / Full range up to 305 VAC
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Output constant current level adjustable
Class 2 power unit
Three in one dimming function 1-10 Vdc or PWM signal or resistance
Suitable for LED lighting and moving sign applications
Suitable for dry / damp locations or outdoor application
100 percent full load burn-in test
3 years warranty
额定功率 60.9 W
输出接口数 1
输出电压 42 V
输出电流 1.45 A
通道数 1
输入电流 0.64 A
输出功率 60.9 W
输入电压DC Max 431 V
输入电压DC Min 127 V
输入电压AC Max 305 V
输入电压AC Min 90 V
输出电压Max 42 V
输出电压Min 25.2 V
输出电流Min 0.87 A
输入电流Min 0.64 A
输出功率Max 60 W
工作温度Max 70 ℃
工作温度Min -40 ℃
电源电压 90.305VAC, 127.431VDC
输入电压 90VAC ~ 305VAC, 127VDC ~ 431VDC
引脚数 9
封装 Open Frame
长度 147 mm
宽度 53 mm
高度 27 mm
封装 Open Frame
重量 200 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
