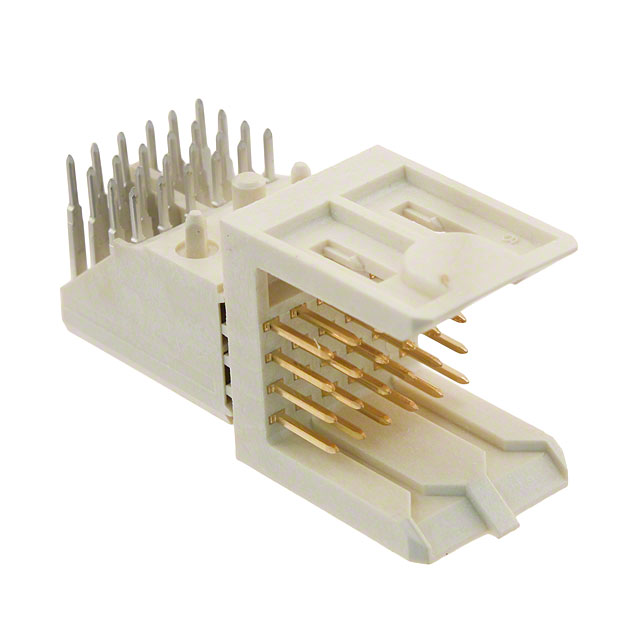

The speed and size of this hard metric HM1L41AAP000H6PLF backplane connector from FCI provide a significant advantage for linking multiple small scale devices and operations. This HDR connector&s;s 24 contacts that are made out of phosphor bronze. It has a right angle body orientation. Its pitch is 2 mm. It has a header type gender. This is a 4-row connector. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. HM1L41AAP000H6PLF is housed in natural/white liquid crystal polymer. It uses the solder termination method. This product is 11.98 mm long, 15.8 mm tall and 31.86 mm deep. This backplane connector has an operating temperature of -55 to 125 °C.
24 连接器 接头，公引脚 板边缘，通孔，直角 天然 -
得捷:
CONN HEADER 24POS EDGE MNT
艾睿:
The speed and size of this hard metric HM1L41AAP000H6PLF backplane connector from FCI provide a significant advantage for linking multiple small scale devices and operations. This HDR connector&s;s 24 contacts that are made out of phosphor bronze. It has a right angle body orientation. Its pitch is 2 mm. It has a header type gender. This is a 4-row connector. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. HM1L41AAP000H6PLF is housed in natural/white liquid crystal polymer. It uses the solder termination method. This product is 11.98 mm long, 15.8 mm tall and 31.86 mm deep. This backplane connector has an operating temperature of -55 to 125 °C.
