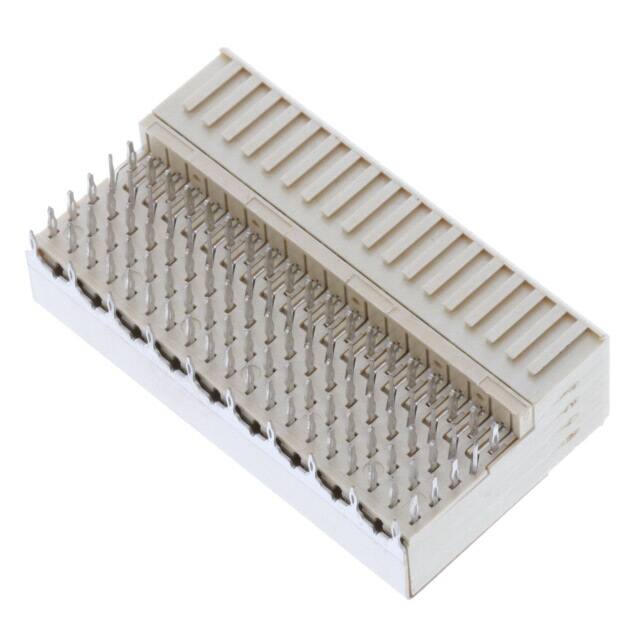

Conn Hard Metric F 95 POS 2mm Press Fit RA Thru-Hole Tray
95 位置 插座，母型插口 连接器 0.079"（2.00mm） 板边缘，通孔，直角
得捷:
CONN RECEPT 95POS 2MM PRESS-FIT
艾睿:
Connect two or more printed circuit boards together using hard metric HM2R71PA5108N9LF backplane connectors developed by FCI, and create a computer system that meets your requirements. This F connector&s;s 95 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a female type gender. Its pitch is 2 mm. It has a right angle body orientation. It has a maximum voltage rating of 750 VAC. This is a 5-row connector. This device has a maximum current rating of 1.5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This backplane connector has an operating temperature of -55 to 125 °C. This product is 37.9 mm long, 11.4 mm tall and 20.7 mm deep. HM2R71PA5108N9LF is housed in thermoplastic. It uses the press fit termination method.
