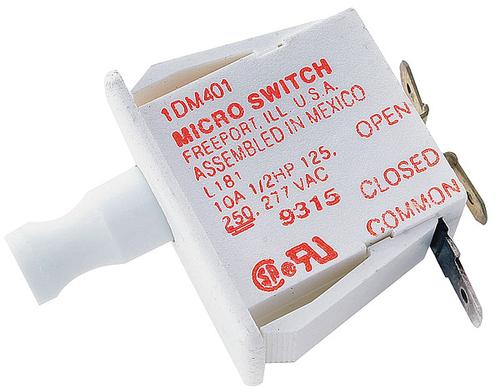

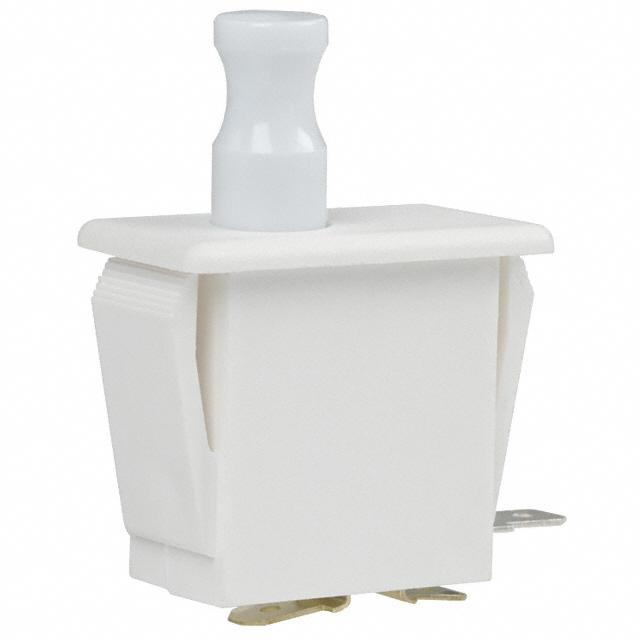

HONEYWELL 1DM401 安全联锁开关, DM系列, SPDT, 快速连接，焊接, 277 V, 10 A, 未评级
The is a single-pole double-throw SPDT snap-in panel-mount safety interlock Basic Switch with quick-connect/solder terminals for ease of installation. The MICRO SWITCH™ DM series accepts a button for manual operation and has pull-to-cheat action, white finger grip plunger. The switch is designed for a variety of applications and known for their compact, lightweight design and accurate repeatability.
- .
- White faceplate
- .
- Long life
- .
- -37 to 82°C Operating temperature range
额定电压AC 125 V
额定电流 10 A
触点类型 SPDT
针脚数 2
触点额定电流 10.0 A
额定电流Max 10 A
工作温度Max 82 ℃
工作温度Min -37 ℃
额定电压 277 VAC
额定电压AC Max 277 V
安装方式 Panel, Snap-In, Quick Connect
封装 -
高度 51.05 mm
封装 -
触点材质 Silver
工作温度 -37℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 安全, Security, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
