电压检测器系列具有可编程延迟 Voltage Detector Series with Programmable Delay
The voltage detector voltage monitor IC from makes it easy to protect components in your circuit from any unwanted voltage spikes. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a typical reset threshold voltage of 4.7 V, with a minimum of 4.606 V and a maximum of 4.794 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 0.8 V and a maximum of 10 V.
电源电压DC 800mV min
无卤素状态 Halogen Free
供电电流 530 nA
阈值电压 4.7 V
复位电压Min 4.606 V
复位电压Max 4.794 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
电源电压Max 10 V
电源电压Min 0.8 V
安装方式 Surface Mount

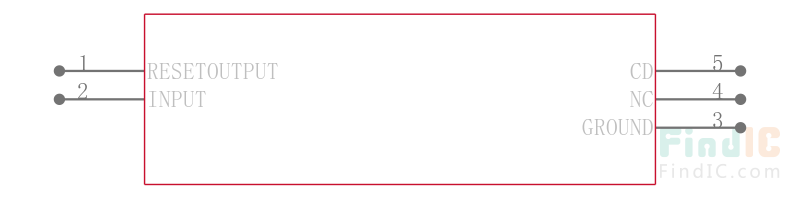

引脚数 5

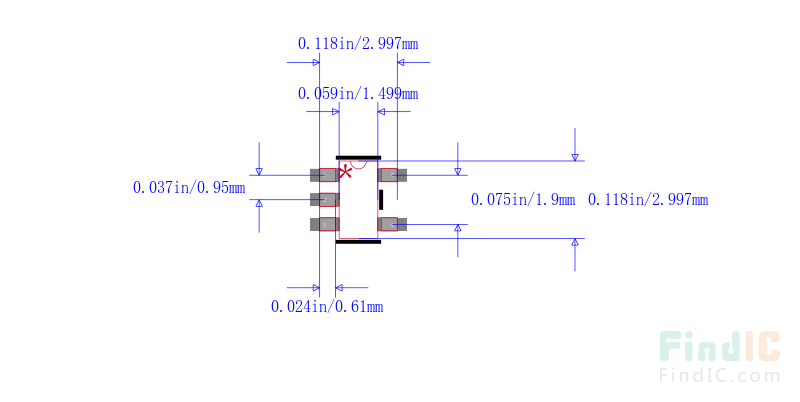

封装 SOT-23-5
高度 1 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Low Battery Detection, Occupant Comfort, Braking, Instrument Cluster, Power Fail Indicator, Infotainment, Nagivator, Occupant Protection, Battery Backup Detection, Powertrain, Body Electronic, Microprocessor Reset Controller
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
