NCV303LSN45T1G

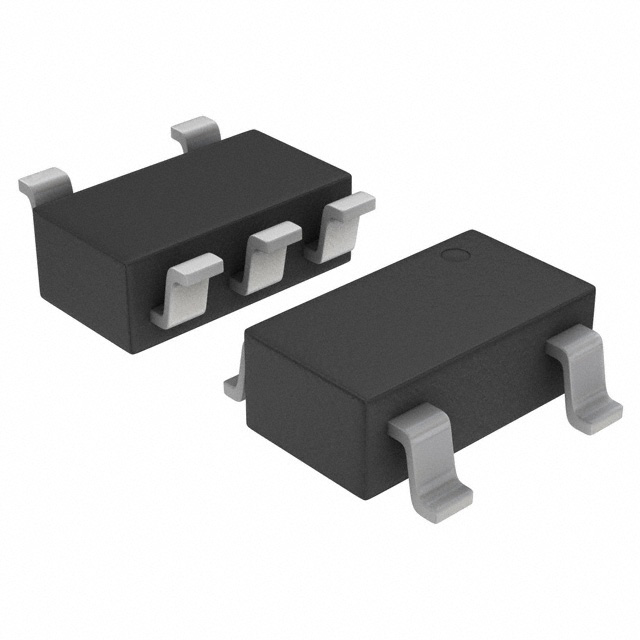

NCV303LSN45T1G图片1

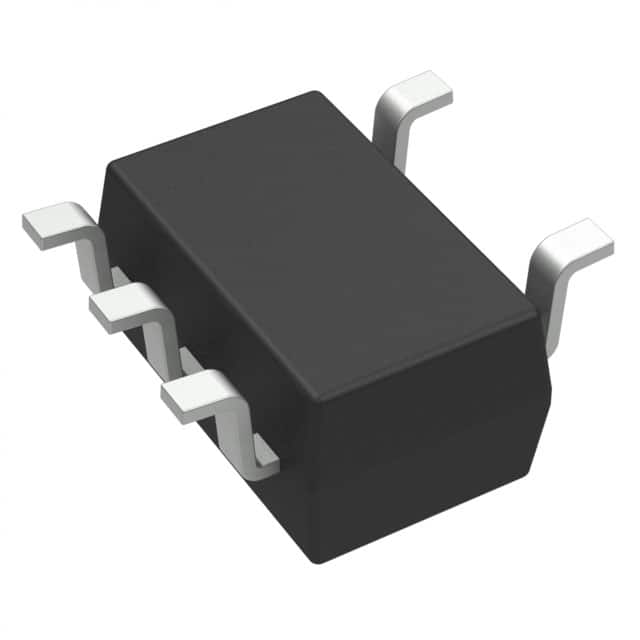

NCV303LSN45T1G图片2
NCV303LSN45T1G图片3
NCV303LSN45T1G图片4
NCV303LSN45T1G图片5
NCV303LSN45T1G图片6
NCV303LSN45T1G图片7
NCV303LSN45T1G概述

NCP303 系列 4.5 V 阈值 10 V 电源 CMOS 电压 检测器 - TSOP-5

The NCP/NCV302 and NCP/NCV303 series are second generation ultra-low current voltage detectors that contain a programmable time delay generator. These devices are specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is paramount.Each series features a highly accurate under voltage detector with hysteresis and an externally programmable time delay generator. This combination of features prevents erratic system reset operation.The NCP/NCV302 series consists of complementary output devices that are available with either an active high or active low reset. The NCP/NCV303 series has an open drain N-channel output with an active low reset output.

Features |   | Benefits

---|---|---

 | |  | |  |

.
NCV Version for Automotive

|   |

.
AEC-Q100 Qualified
.
Quiescent Current of 0.5 uA Typical

|   |

.
High Accuracy Under Voltage Threshold of 2.0%

|   |

.
Externally Programmable Time Delay Generator

|   |

.
Wide Operating Voltage Range of 0.8 V to 10 V

|   |

.
Complementary or Open Drain Output

|   |

.
Active Low or Active High Reset

|   |

.
Pb-Free Packages are Available

|   |

NCV303LSN45T1G中文资料参数规格
技术参数

电源电压DC 800mV min

无卤素状态 Halogen Free

供电电流 520 nA

阈值电压 4.5 V

复位电压Min 4.41 V

复位电压Max 4.59 V

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 5

封装 SOT-23-5

外形尺寸

封装 SOT-23-5

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Low Battery Detection, Braking, Occupant Comfort, Instrument Cluster, Power Fail Indicator, Infotainment, Nagivator, Occupant Protection, Battery Backup Detection, Powertrain, Body Electronic, Microprocessor Reset Controller

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

NCV303LSN45T1G引脚图与封装图

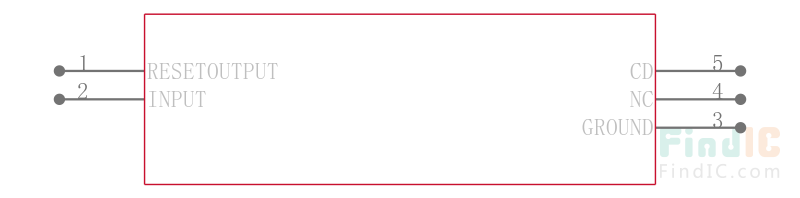

NCV303LSN45T1G引脚图

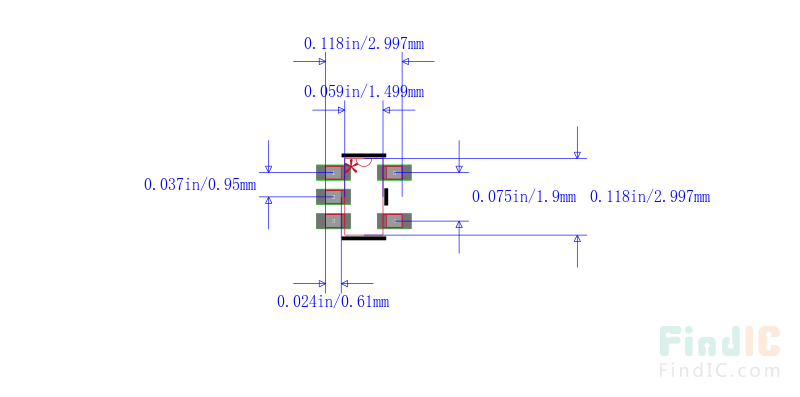

NCV303LSN45T1G封装图

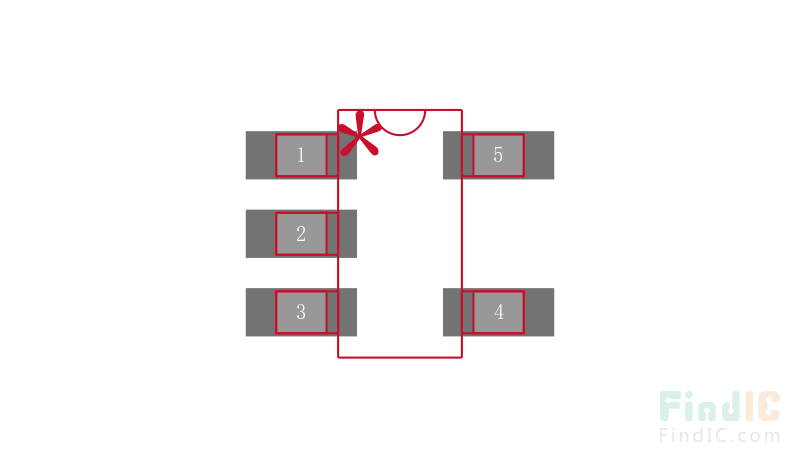

NCV303LSN45T1G封装焊盘图
