HPCI4F

HPCI4F图片1
HPCI4F图片2
HPCI4F图片3
HPCI4F图片4
HPCI4F图片5
HPCI4F图片6
HPCI4F图片7
HPCI4F概述

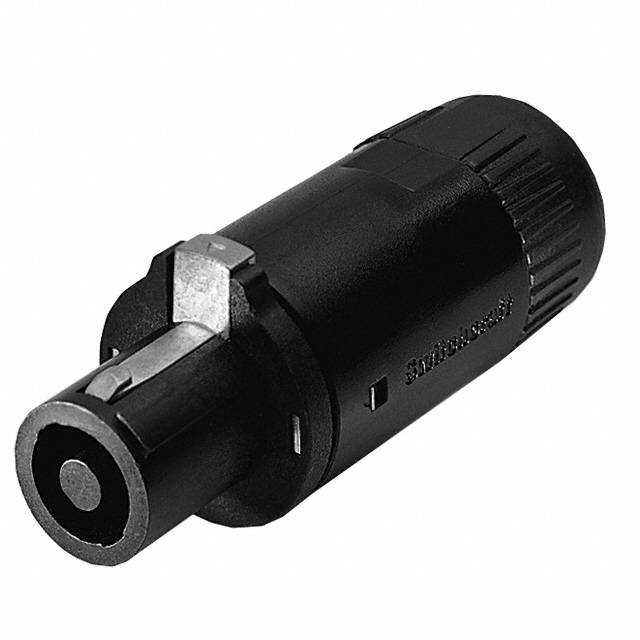

Conn Power PL 4POS Faston ST Cable Mount 4 Terminal 1Port

* 30 A Rating Per UL 1977 on PC Mount Versions

* 50 A Rating Per UL 1977 on Faston® Versions

* Available in Either Straight, Right-Angle or In-Line

* The In-Line Version Mates with Either the Straight- or Right-Angle Cord Plug, Allowing the Extension of Cable Runs


得捷:
CONN PLUG INLINE CORD 4PIN .250


艾睿:
Conn Power F 4Power POS Faston ST Panel Mount 4 Terminal 1 Port


Allied Electronics:
Connector PLUG INLINE CORD 4PIN .250


安富利:
Conn Power PL 4 POS Faston ST Cable Mount 4 Terminal 1 Port


Verical:
Conn Power F 4Power POS Faston ST Panel Mount 4 Terminal 1 Port


MASTER:
Conn Power F 4Power POS Faston ST Panel Mount 4 Terminal 1 Port


Electro Sonic:
Conn Power F 4Power POS Faston ST Panel Mount 4 Terminal 1 Port


HPCI4F中文资料参数规格
技术参数

触点数 4

额定电流 50 A

针脚数 4

额定电流Max 50 A

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压Max 1500 VAC

外形尺寸

高度 26.7 mm

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8535908040

数据手册

在线购买HPCI4F
型号: HPCI4F
制造商: Switchcraft / Conxall
描述:Conn Power PL 4POS Faston ST Cable Mount 4 Terminal 1Port
