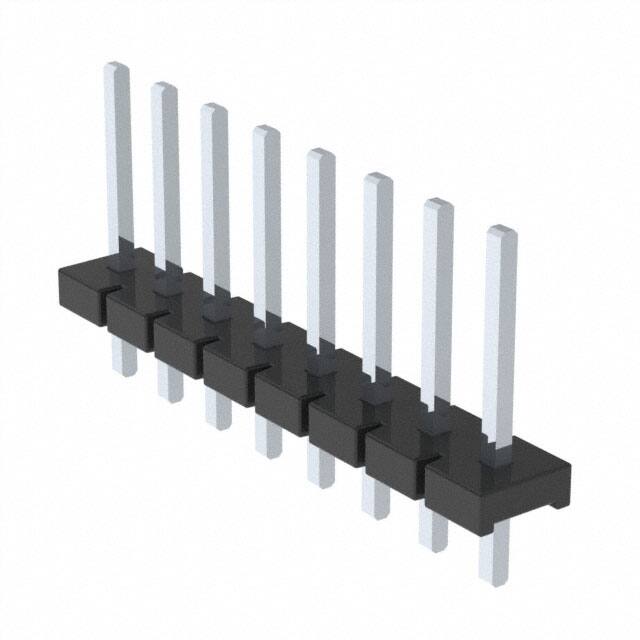

HPM-08-02-T-S

SAMTEC HPM-08-02-T-S Board-To-Board Connector, 5.08mm, 8Contacts, Header, HPM Series, Through Hole, 1Rows

Connector Header Through Hole 8 position 0.200" 5.08mm

得捷:
CONN HEADER VERT 8POS 5.08MM

艾睿:
Think of Samtec&s;s unshrouded HPM-08-02-T-S header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. Its pitch is 5.08 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 16.6 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 40.64 mm long, 15.75 mm tall and 6.35 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. HPM-08-02-T-S is housed in polyester.

Verical:
Conn Unshrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  HPM-08-02-T-S  Board-To-Board Connector, 5.08 mm, 8 Contacts, Header, HPM Series, Through Hole, 1 Rows
