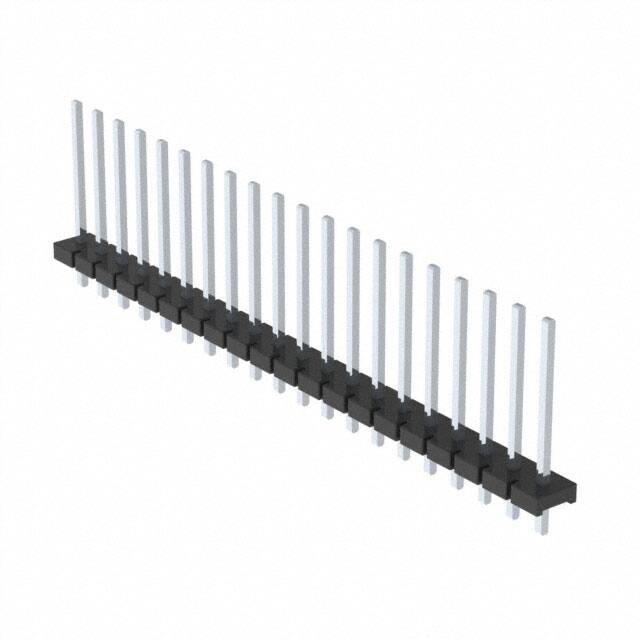

SAMTEC HPM-20-04-T-S Board-To-Board Connector, 5.08mm, 20Contacts, Header, HPM Series, Through Hole, 1Rows
Connector Header Through Hole 20 position 0.200" 5.08mm
得捷:
CONN HEADER VERT 20POS 5.08MM
艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded HPM-20-04-T-S header connector from Samtec. This HDR connector&s;s 20 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. Its pitch is 5.08 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 16.6 A/contact. HPM-20-04-T-S is housed in polyester. It uses the solder termination method. This product is 101.6 mm long, 23.6 mm tall and 6.35 mm deep. This connector has an operating temperature of -55 to 105 °C.
Newark:
# SAMTEC HPM-20-04-T-S Board-To-Board Connector, 5.08 mm, 20 Contacts, Header, HPM Series, Through Hole, 1 Rows
