HTSS-110-01-T-DV-TR

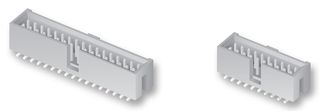

HTSS-110-01-T-DV-TR图片1
HTSS-110-01-T-DV-TR图片2
HTSS-110-01-T-DV-TR图片3
HTSS-110-01-T-DV-TR概述

SAMTEC HTSS-110-01-T-DV-TR Board-To-Board Connector, 2.54mm, 20Contacts, Header, HTSS Series, Surface Mount, 2Rows

针座 表面贴装型 20 位置 0.100"(2.54mm)


得捷:
CONN HEADER SMD 20POS 2.54MM


艾睿:
Support physical configuration options for jumper posts by mounting this shrouded HTSS-110-01-T-DV-TR header connector from Samtec. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with matte tin over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. HTSS-110-01-T-DV-TR is housed in natural polychlorinated terphenyl. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 29.21 mm long, 10.16 mm tall and 11.18 mm deep.


Verical:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Top Entry SMD T/R


HTSS-110-01-T-DV-TR中文资料参数规格
技术参数

触点数 20

极性 Male

触点电镀 Gold

绝缘电阻 5000 MΩ

排数 2

额定电流Max 3A/触头

工作温度Max 105 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

外形尺寸

高度 10.16 mm

物理参数

外壳颜色 Natural

触点材质 Phosphor Bronze

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买HTSS-110-01-T-DV-TR
型号: HTSS-110-01-T-DV-TR
制造商: Samtec 申泰电子
描述:SAMTEC HTSS-110-01-T-DV-TR Board-To-Board Connector, 2.54mm, 20Contacts, Header, HTSS Series, Surface Mount, 2Rows
替代型号HTSS-110-01-T-DV-TR
型号/品牌 代替类型 替代型号对比

HTSS-110-01-T-DV-TR

Samtec 申泰电子

当前型号

当前型号

HTSS-110-01-T-DV

申泰电子

完全替代

HTSS-110-01-T-DV-TR和HTSS-110-01-T-DV的区别

HTSS-110-01-T-DV-P-TR

申泰电子

完全替代

HTSS-110-01-T-DV-TR和HTSS-110-01-T-DV-P-TR的区别

HTSS-110-01-L-DV

申泰电子

功能相似

HTSS-110-01-T-DV-TR和HTSS-110-01-L-DV的区别
