HTST-105-01-G-D

SAMTEC HTST-105-01-G-D Board-To-Board Connector, 2.54mm, 10Contacts, Header, HTST Series, Through Hole, 2Rows

Connector Header Through Hole 10 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 10POS 2.54MM

艾睿:

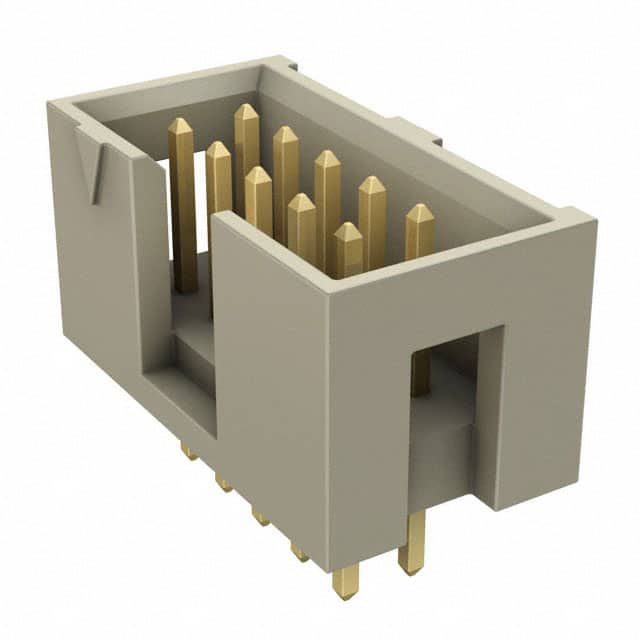

Thanks to Samtec&s;s shrouded HTST-105-01-G-D header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 3.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. HTST-105-01-G-D is housed in natural polychlorinated terphenyl. This product is 20.32 mm long, 9.27 mm tall and 9.27 mm deep.

安富利:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  HTST-105-01-G-D  Board-To-Board Connector, 2.54 mm, 10 Contacts, Header, HTST Series, Through Hole, 2 Rows
