HTST-110-01-S-D

SAMTEC HTST-110-01-S-D Wire-To-Board Connector, 2.54mm, 20Contacts, Header, HTST Series, Through Hole, 2Rows

Connector Header Through Hole 20 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 20POS 2.54MM

艾睿:

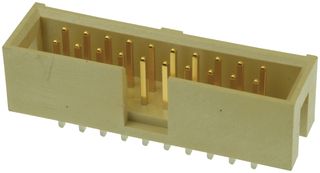

Mount this shrouded HTST-110-01-S-D header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. HTST-110-01-S-D is housed in natural polychlorinated terphenyl. This product is 33.02 mm long, 9.27 mm tall and 9.27 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

Chip1Stop:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  HTST-110-01-S-D  Wire-To-Board Connector, 2.54 mm, 20 Contacts, Header, HTST Series, Through Hole, 2 Rows
