HTSW-102-07-F-D

SAMTEC HTSW-102-07-F-D Board-To-Board Connector, 2.54mm, 4Contacts, Header, HTSW Series, Through Hole, 2Rows

针座 通孔 4 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 4POS 2.54MM

欧时:
HEADER VERT 4POS 2.54MM

艾睿:

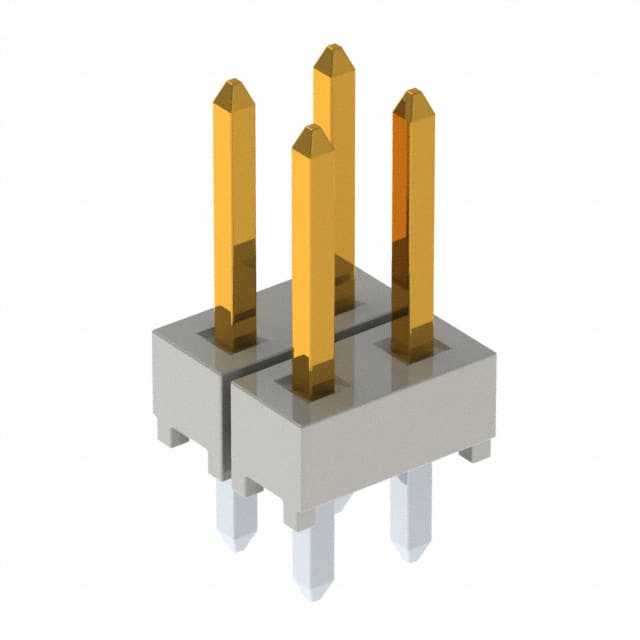

Mounting this unshrouded HTSW-102-07-F-D header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 5.08 mm long, 8.38 mm tall and 5.02 mm deep. This connector has an operating temperature of -55 to 125 °C. HTSW-102-07-F-D is housed in natural liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  HTSW-102-07-F-D  Board-To-Board Connector, 2.54 mm, 4 Contacts, Header, HTSW Series, Through Hole, 2 Rows
