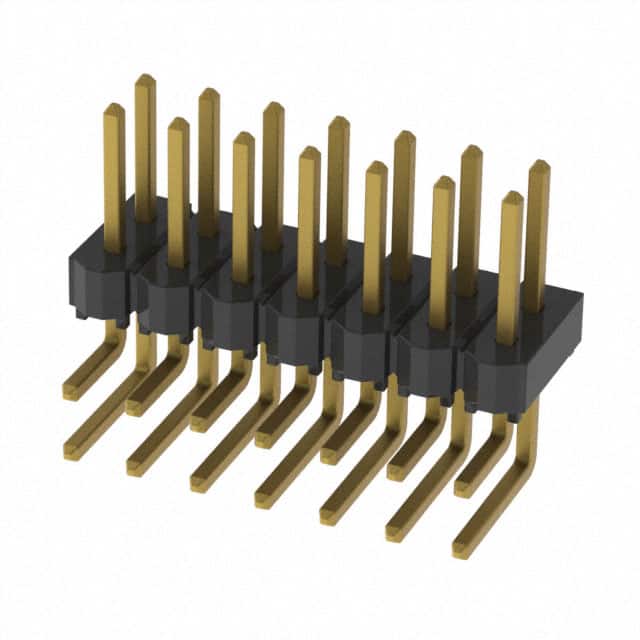

HTSW-107-08-G-D-RA

2.54mm 方针

The HTSW series from are high temperature terminal strip headers. These are unshrouded through hole headers with 0.025" 0.635mm square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. HTSW series connectors are available with industry"s largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.

.

Orderable with single/dual/triple rows -S/-D/-T/-Q option

.

Pitch spacing of 5.08mm 2 to 25 contacts per row with right angle orientation

.

High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts

.

Terminal material is phosphor bronze

.

Natural liquid crystal polymer insulator material

.

Complies with UL E111594 and CSA 090871_0_000 standards

.

Locking lead and locking clip feature is optional
