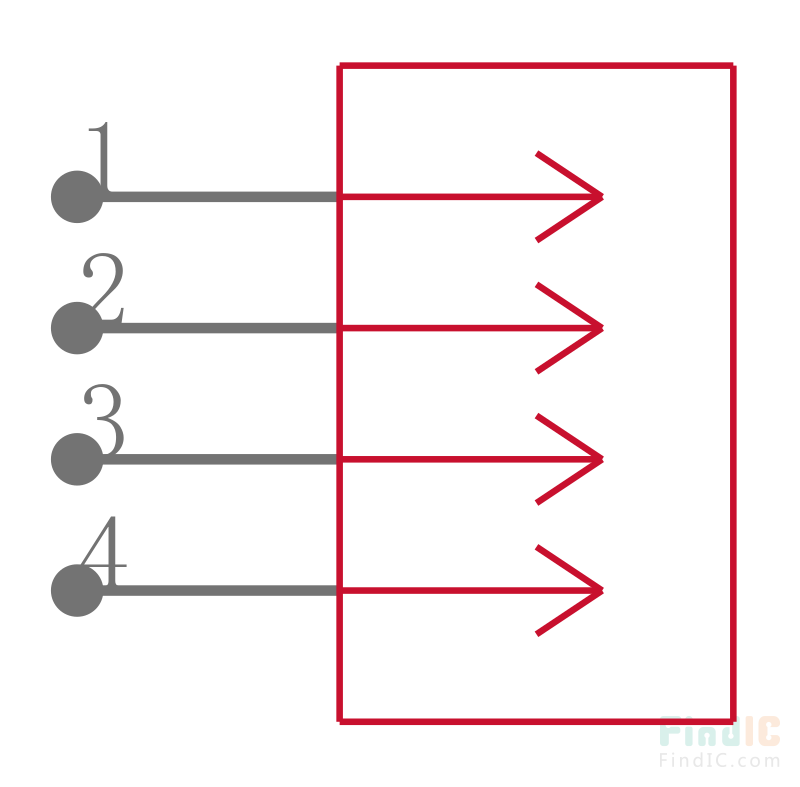

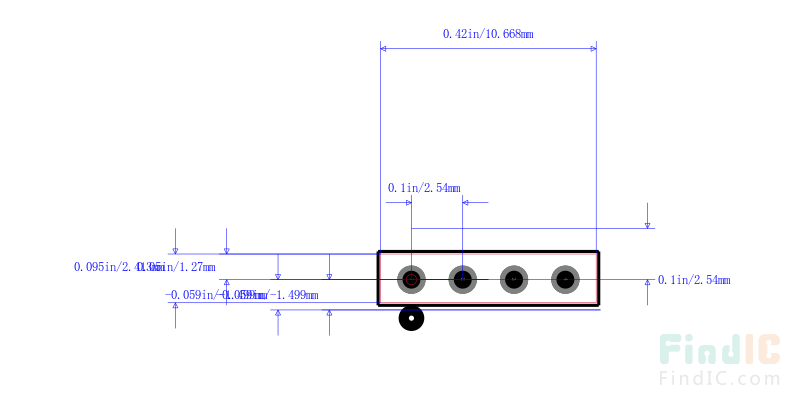

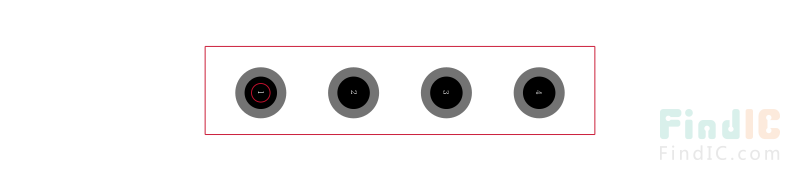

HTSW-104-24-F-S

2.54mm 方针

针座 通孔 4 位置 0.100"（2.54mm）

欧时:
HEADER VERT 4POS 2.54MM

得捷:
CONN HEADER VERT 4POS 2.54MM

立创商城:
2.54mm 方针

艾睿:
Think of Samtec&s;s unshrouded HTSW-104-24-F-S header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product is 10.16 mm long, 9.27 mm tall and 2.48 mm deep. It uses the solder termination method. HTSW-104-24-F-S is housed in natural liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  HTSW-104-24-F-S  Board-To-Board Connector, 2.54 mm, 4 Contacts, Header, HTSW Series, Through Hole, 1 Rows
