HTSW-107-07-L-D

SAMTEC HTSW-107-07-L-D Board-To-Board Connector, 2.54mm, 14Contacts, Header, HTSW Series, Through Hole, 2Rows

针座 通孔 14 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 14POS 2.54MM

欧时:
.100" High-Temp Terminal Strip

艾睿:

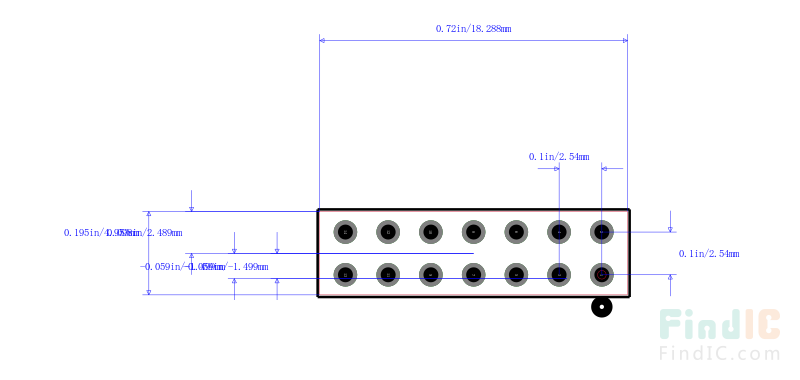

Support physical configuration options for jumper posts by mounting this unshrouded HTSW-107-07-L-D header connector from Samtec. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. HTSW-107-07-L-D is housed in natural liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 17.78 mm long, 8.38 mm tall and 5.02 mm deep. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  HTSW-107-07-L-D  Board-To-Board Connector, 2.54 mm, 14 Contacts, Header, HTSW Series, Through Hole, 2 Rows

Win Source:
CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" 2.54mm
