HTSW-110-07-L-D

2.54mm 方针

针座 通孔 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 20POS 2.54MM

欧时:
HEADER VERT 10POS 2.54MM

立创商城:
2.54mm 方针

艾睿:

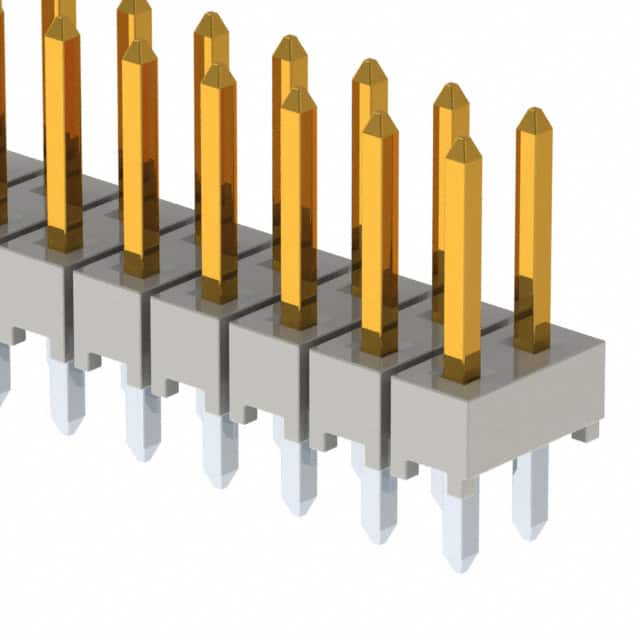

Think of Samtec&s;s unshrouded HTSW-110-07-L-D header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 25.4 mm long, 8.38 mm tall and 5.02 mm deep. HTSW-110-07-L-D is housed in natural liquid crystal polymer.

安富利:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  HTSW-110-07-L-D  Board-To-Board Connector, 2.54 mm, 20 Contacts, Header, HTSW Series, Through Hole, 2 Rows
