NX3L2467HR,115

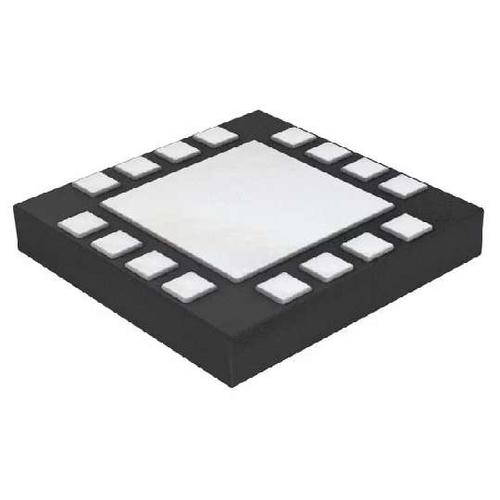

Interface IC - analogue switches NXP Semiconductors NX3L2467HR, 115 HXQFN 16

Overview

The NX3L2467 is a dual low-ohmic double-pole double-throw analog switch suitable for use as an analog or digital multiplexer/demultiplexer. It consists of four switches, each with two independent input/outputs nY0 and nY1 and a common input/output nZ. The two digital inputs 1S and 2S are used to select the switch position. 1S is used in selecting the independent inputs/outputs switched to 1Z and 2Z, and 2S is used in selecting the independent inputs/outputs switched to 3Z and 4Z. Schmitt trigger action at the digital inputs makes the circuit tolerant to slower input rise and fall times. Low threshold digital inputs allows this device to be driven by 1.8 V logic levels in 3.3 V applications without significant increase in supply current ICC. This makes it possible for the NX3L467 to switch 4.3 V signals with a 1.8 V digital controller, eliminating the need for logic level translation. The NX3L2467 allows signals with amplitude up to VCC to be transmitted from nZ to nY0 or nY1; or from nY0 or nY1 to nZ. Its low ON resistance 0.5 Ω and flatness 0.13 Ω ensures minimal attenuation and distortion of transmitted signals.

MoreLess

## Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance peak:

* 1.7 Ω typical at VCC = 1.4 V

* 1.0 Ω typical at VCC = 1.65 V

* 0.6 Ω typical at VCC = 2.3 V

* 0.5 Ω typical at VCC = 2.7 V

* 0.5 Ω typical at VCC = 4.3 V

* Break-before-make switching

* High noise immunity

* ESD protection:

* HBM JESD22-A114F Class 3A exceeds 4000 V

* MM JESD22-A115-A exceeds 200 V

* CDM AEC-Q100-011 revision B exceeds 1000 V

* CMOS low-power consumption

* Latch-up performance exceeds 100 mA per JESD 78B Class II Level A

* 1.8 V control logic at VCC = 3.6 V

* Control input accepts voltages above supply voltage

* Very low supply current, even when input is below VCC

* High current handling capability 350 mA continuous current under 3.3 V supply

* Specified from –40 ℃ to +85 ℃ and from –40 ℃ to +125 ℃

## Target Applications

* Cell phone

* PDA

* Portable media player
