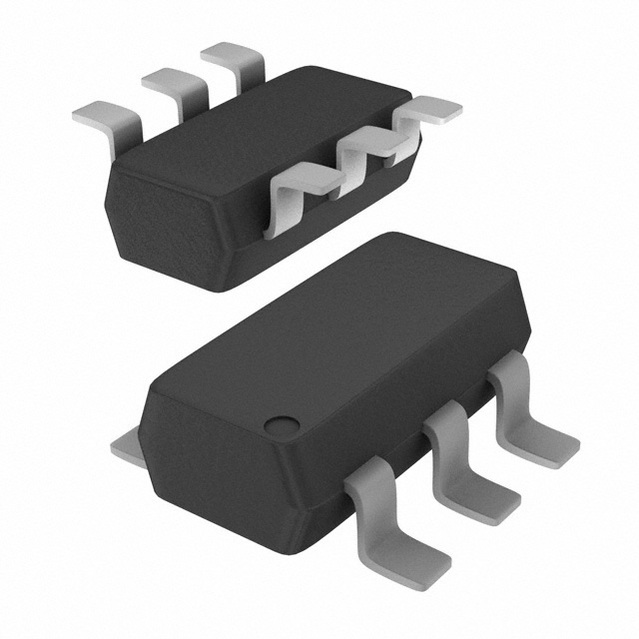

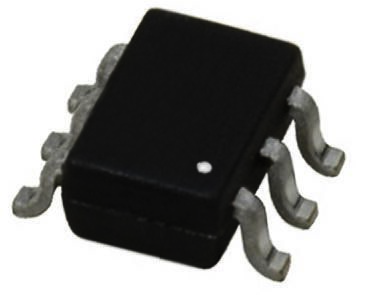

ON SEMICONDUCTOR NUP4304MR6T1G 静电保护装置, TSOP, 6 引脚, 70 V
NUP4301MR6T1,低电容阵列,适用于四个数据线路的 ESD 保护
得捷:
TVS DIODE SC74
立创商城:
NUP4304MR6T1G
欧时:
### NUP4301MR6T1,低电容二极管阵列,适用于四个数据线路的 ESD 保护### 瞬态电压抑制器,On Semiconductor
e络盟:
静电保护装置, TSOP, 6 引脚, 70 V, NUP43 Series
艾睿:
Even low voltage discharges can cause damage to electronic components so get this diode array NUP4304MR6T1G ESD protection device from ON Semiconductor for added protection. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc kV. This ESD diode has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a quad configuration. Its capacitance value is 3 pF.
Allied Electronics:
NUP4304MR6T1G; Quad Uni-Directional TVSDiode Array; 6-Pin TSOP
安富利:
ESD Suppressor Diode Arrays 15KV 6-Pin TSOP T/R
Chip1Stop:
ESD Suppressor Diode Array Uni-Dir 70V Automotive 6-Pin TSOP T/R
Verical:
ESD Suppressor Diode Array Uni-Dir 70V Automotive 6-Pin SC-74 T/R
Newark:
# ON SEMICONDUCTOR NUP4304MR6T1G ESD Protection Device, 70 V, TSOP, 6
力源芯城:
四线低电容ESD阵列
Win Source:
TVS DIODE SC74-6
工作电压 70 V
电容 3 pF
无卤素状态 Halogen Free
针脚数 6
测试电流 100 µA
最小反向击穿电压 70 V
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 SC-74-6
长度 3.1 mm
宽度 1.7 mm
高度 1 mm
封装 SC-74-6
工作温度 -40℃ ~ 85℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, Industrial, 通用, Communications & Networking, Computers & Computer Peripherals, 通信与网络, 汽车级, 成像, Automotive, Imaging, Video & Vision, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NUP4304MR6T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NUP4304MR6T1 安森美 | 完全替代 | NUP4304MR6T1G和NUP4304MR6T1的区别 |
NUP4301MR6T1G 安森美 | 类似代替 | NUP4304MR6T1G和NUP4301MR6T1G的区别 |
NUP4301MR6T1 安森美 | 类似代替 | NUP4304MR6T1G和NUP4301MR6T1的区别 |
