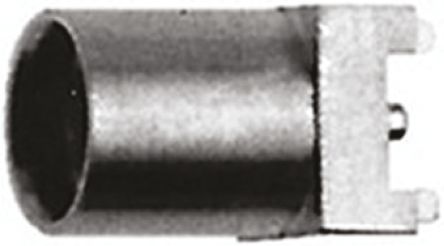

MMCX PCB Receptacle Connectors
Telegartner MMCX series of micro-miniature PCB connectors is a miniature version of the MCX and also incorporates a snap
coupling and are suitable for use up to 6 GHz, the connectors impedance is controlled at 50 Ω. MMCX PCB connector versions are available for mounting to printed circuit boards using thru-hole soldering, press-fit and SMT. Due to their small size, these MMCX PCB connectors can be used in the smallest of instruments, hand held video games as well as personal communication equipment.
Over 500 mating cycles
insulation resistance 5GΩ
50Ω impedance
### 标准
EN 122340
