5256-RC

BOURNS JW MILLER  5256-RC  扼流圈, 5200系列, 500uH 20% 2A 260mΩ

500 µH 无屏蔽 鼓芯，绕线式 器 2 A 260 毫欧最大 轴向

立创商城:
500uH ±20% 2A 260mΩ

得捷:
FIXED IND 500UH 2A 260 MOHM TH

e络盟:
扼流圈, 5200系列, 500uH 20% 2A 260mΩ

艾睿:

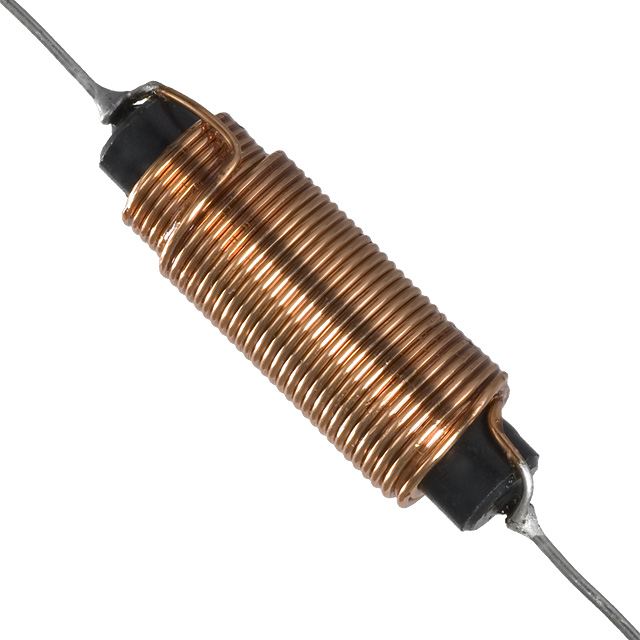

This hash choke 5256-RC leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This leaded inductor has a maximum DC current of 2 A with a maximum resistance of 260m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 990KTyp Hz. It has an inductance of 500u H. This device utilizes wirewound technology. This product is 31.75 mm long with a diameter of 14.22 mm. It has a tolerance of 20%.

Allied Electronics:
RF Choke; Hash; 500uH; 2Adc; 20%; 0.26 Ohms DCR; 1.25In.L

安富利:
Ind Hash Choke Wirewound 500uH 20% 1KHz Ferrite 2A AXL Bag

TME:
Inductor: wire; THT; 500uH; 2A; 260mΩ; Ø14.22x31.75mm; ±20%

Verical:
Hash Choke Wirewound 500uH 20% 1KHz Ferrite 2A 0.26Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  5256-RC  Choke, Hash, 500 µH, 2 A, 0.26 ohm, ± 20%, 5200 Series

MASTER:
Hash Choke - Wirewound - Fixed Inductors 500uH 20% - 1KHz - Ferrite - 2A - 260m Ohm.

Online Components:
Hash Choke Wirewound 500uH 20% 1KHz Ferrite 2A 260mOhm DCR AXL Bag

Electro Sonic:
Hash Choke - Wirewound - Fixed Inductors 500uH 20% - 1KHz - Ferrite - 2A - 260m Ohm.
