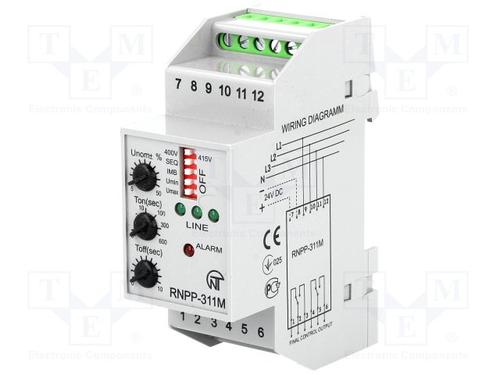

RNPP-311M中文资料参数规格
物理参数
工作温度 -35℃ ~ 55℃
其他
Module type voltage monitoring relay
Controlled parameter phase asymmetry, phase sequence, undervoltage, overvoltage
Mounting DIN
Additional functions LED status indicator
Output 1 type SPDT
Operating temperature -35...55°C
Output 1 electrical parameters 250VAC/2A, 30VDC/5A
Leads screw terminals
Contact actuation delay 0...600s
Sealing IP20 at terminal side, IP40
Body dimensions 35 x 93 x 65mm
Controlled parameter range 3 x 230/400V AC, 3 x 240/415V AC
Voltage between phases for three phase system 3 x 230...415V AC
Power supply from tested wiring system
Output 2 type SPDT
Output 2 electrical parameters 250VAC/2A, 30VDC/5A
Dimensions see
符合标准
RoHS标准 RoHS Compliant
