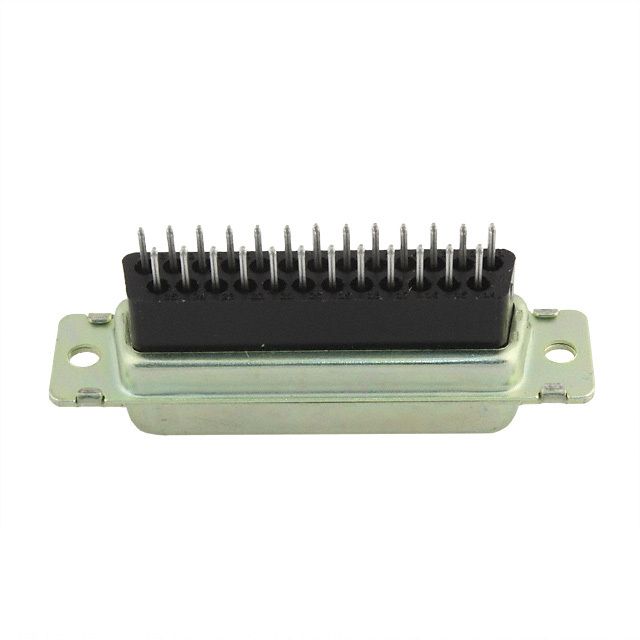

D-Sub标准连接器 DSUB B25P V/MNT
25 位 D-Sub 插头,公引脚
得捷:
CONN D-SUB PLUG 25POS VERT SLDR
贸泽:
D-Sub标准连接器 DSUB B25P V/MNT
艾睿:
Make the most secure connections between serial ports using the 5205737-7 DVI connector from TE Connectivity. Its pitch is 2.76 mm. This 2-row connector has a single port. It has a straight body orientation. 5205737-7 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 53.42 mm long, 17.8 mm tall and 12.93 mm deep. Its 25 terminals use the solder termination method.
安富利:
Conn D-Subminiature PIN 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature PIN 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port
Verical:
Conn D-Subminiature PIN 25 POS 2.76mm Solder ST Thru-Hole 25 Terminal 1 Port Tube
MASTER:
PLUG ASSY, SIZE 3, 25 POS, VERTICAL, AMPLIMITE HDP
Powell:
Standard Board Mount Connectors
Electro Sonic:
25 PLUG SP/MS STD
触点数 25
极性 Male
触点电镀 Gold Flash, Gold Flash over Nickel, Tin
额定电流 6 A
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 25
额定电压 125 V
安装方式 Through Hole
长度 53.42 mm
宽度 12.93 mm
高度 17.8 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5205737-7 TE Connectivity 泰科 | 当前型号 | 当前型号 |
L717SDB25POL2 安费诺 | 功能相似 | 5205737-7和L717SDB25POL2的区别 |
