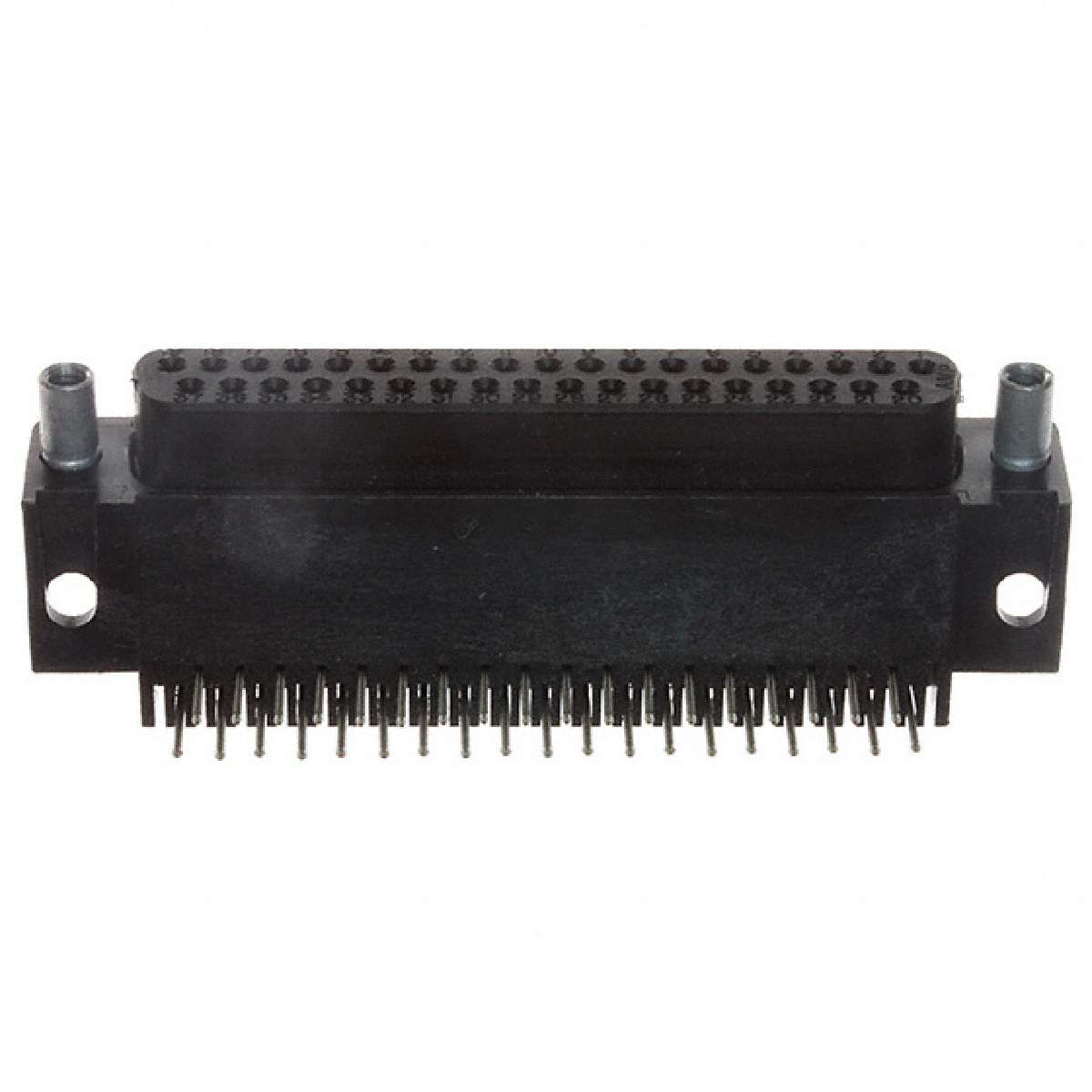

D-Sub标准连接器 DSUB C37S RA590
37 位 D-Sub 插座,母型插口
得捷:
CONN D-SUB RCPT 37POS R/A SLDR
贸泽:
D-Sub标准连接器 DSUB C37S RA590
艾睿:
This 5747462-6 DVI connector from TE Connectivity will make secure connections for all of your serial ports. This socket type connector&s;s 37 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.76 mm. It has a right angle body orientation. This 2-row connector has a single port. 5747462-6 is housed in nylon|polyester. This product is 69.31 mm long, 11.48 mm tall and 24.68 mm deep. Its 37 terminals use the solder termination method.
安富利:
Conn D-Subminiature SKT 37 POS 2.76mm Solder RA Thru-Hole 37 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature SKT 37 POS 2.76mm Solder RA Thru-Hole 37 Terminal 1 Port
Verical:
Conn D-Subminiature SKT 37 POS 1.38mm Solder RA Thru-Hole 37 Terminal 1 Port Package
MASTER:
Conn D-Subminiature SKT 37 POS 1.38mm Solder RA Thru-Hole 37 Terminal 1 Port Package
Powell:
Standard Board Mount Connectors
Online Components:
HD-20 RCPT 37P RA 590 FFSCRLK
Electro Sonic:
HD-20 RCPT 37P RA 590 FFSCRLK
触点数 37
触点电镀 Gold, Tin over Nickel
额定电流 6A/触头
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 37
额定电流Max 6A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
工作电压Max 250VDC, 250VAC
安装方式 Through Hole
引脚间距 2.77 mm
长度 69.31 mm
宽度 24.68 mm
高度 11.48 mm
引脚间距 2.77 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5747462-6 TE Connectivity 泰科 | 当前型号 | 当前型号 |
747462-6 泰科 | 功能相似 | 5747462-6和747462-6的区别 |
