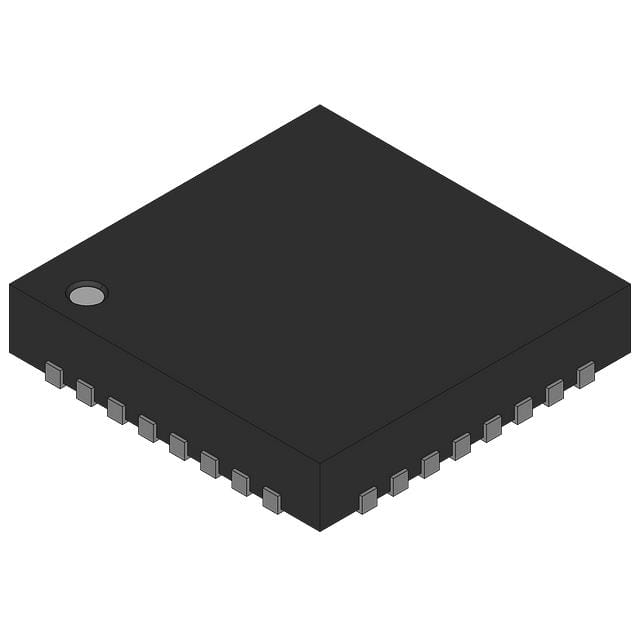

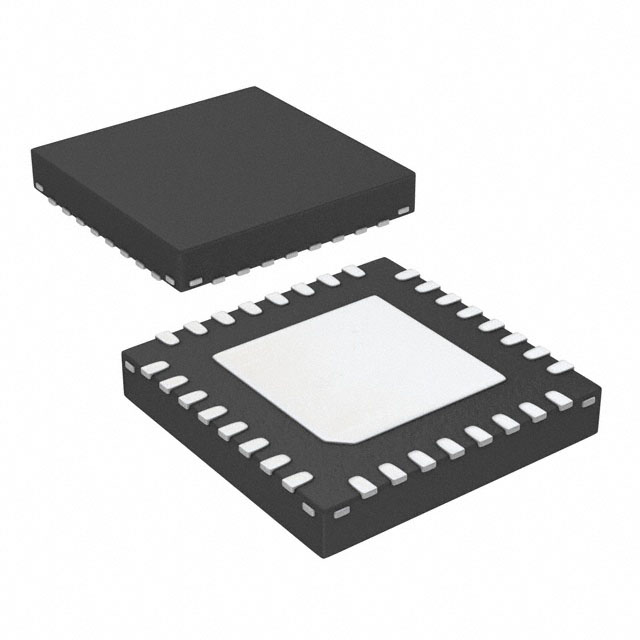

HMC1160LP5ETR

Oscillator VCO 4225MHz to 4650MHz/ 8450MHz to 9300MHz 5V 32Pin QFN EP SMD T/R

Product Details

The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, output power and phase noise performance are excellent over temperature.

Power output is 12 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS compliant SMT package and requires no external matching components.

Applications

.

Point to point and multipoint radio

.

Test equipment and industrial controls

.

VSAT

### Features and Benefits

.

Dual output: fO = 8.45 GHz to 9.3 GHz

.

fO/2 = 4.225 GHz to 4.65 GHz

.

POUT: 12 dBm

.

Phase noise: −116 dBc/Hz at 100 kHz

.

No external resonator needed

.

RoHS compliant, 5 mm × 5 mm SMT package: 25 mm²
