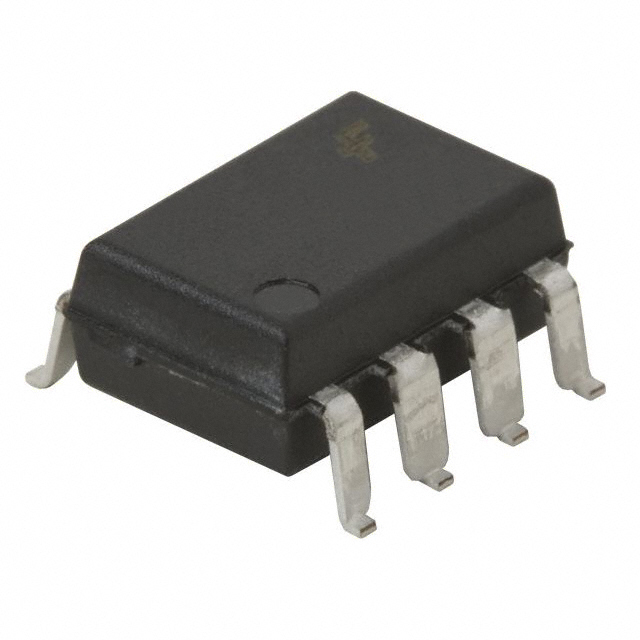

HCPL2611S图片1
HCPL2611S图片2
HCPL2611S图片3
HCPL2611S图片4
HCPL2611S图片5
HCPL2611S图片6
HCPL2611S图片7
HCPL2611S概述

高速的10Mbit / s的逻辑门光电耦合器 High Speed 10MBit/s Logic Gate Optocouplers

Description

The 6N137, HCPL2601, HCPL2611 single-channel and HCPL2630, HCPL2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled

parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA will

provide a minimum output sink current of 13mA fan out of 8.

Features

■Veryhigh speed – 10 MBit/s

■Superior CMR – 10 kV/µs

■Double working voltage-480V

■Fan-out of 8 over -40°C to +85°C

■Logic gate output

■Strobable output

■Wired OR-open collector

■U.L. recognized File # E90700

Applications

■Ground loop elimination

■LSTTL to TTL, LSTTL or 5-volt CMOS

■Line receiver, data transmission

■Data multiplexing

■Switching power supplies

■Pulse transformer replacement

■Computer-peripheral interface

HCPL2611S中文资料参数规格
技术参数

上升/下降时间 50ns, 12ns

输入电压DC 1.40 V

输出电流 0.05 A

电路数 1

通道数 1

正向电压 1.4 V

耗散功率 0.1 W

数据速率 10.0 Mbps

上升时间 0.05 µs

隔离电压 2500 Vrms

正向电流 50 mA

击穿电压 5 V

正向电压Max 1.75 V

正向电流Max 50 mA

下降时间 0.012 µs

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 100 mW

电源电压 4.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 PDIP-8

外形尺寸

高度 3.94 mm

封装 PDIP-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买HCPL2611S
型号: HCPL2611S
制造商: Fairchild 飞兆/仙童
描述:高速的10Mbit / s的逻辑门光电耦合器 High Speed 10MBit/s Logic Gate Optocouplers
替代型号HCPL2611S
型号/品牌 代替类型 替代型号对比

HCPL2611S

Fairchild 飞兆/仙童

当前型号

当前型号

HCPL2611SV

安森美

类似代替

HCPL2611S和HCPL2611SV的区别

HCPL-2602-300E

安华高科

功能相似

HCPL2611S和HCPL-2602-300E的区别

HCPL2611SDV

飞兆/仙童

功能相似

HCPL2611S和HCPL2611SDV的区别
