FN3L4Z

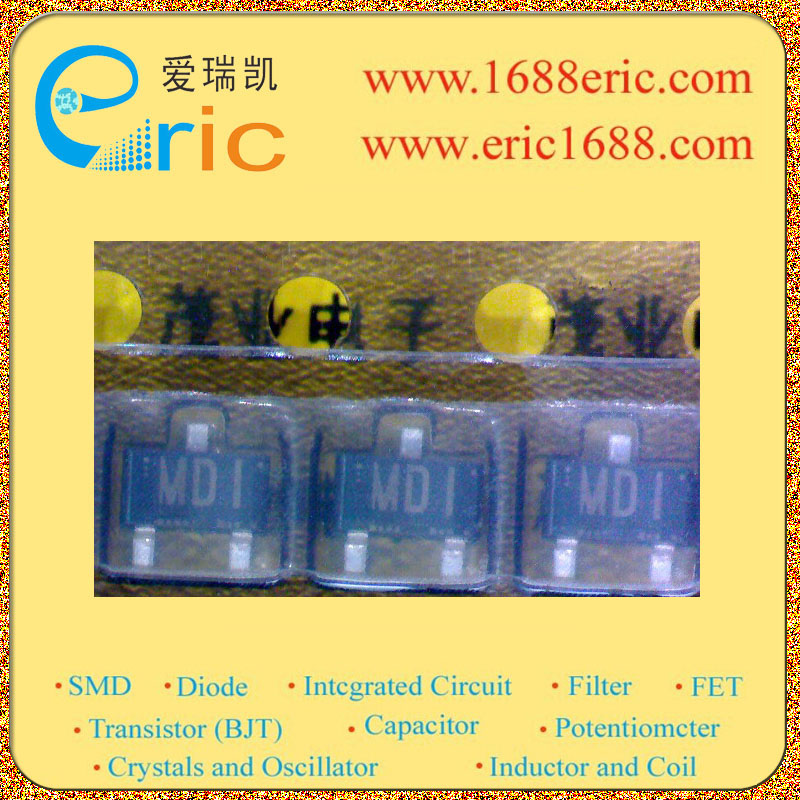

FN3L4Z 带阻尼PNP三极管 -20V -20mA 30 0.2W/200mW SOT-23/SC-59 标记MD1 开关电路，逆变器，接口电路，驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -20V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -20V 集电极连续输出电流IC Collector CurrentIC| -20mA 基极输入电阻R1 Input ResistanceR1| 47KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 电阻比R1/R2 Resistance Ratio| 直流电流增益hFE DC Current GainhFE| 30 截止频率fT Transtion FrequencyfT| 耗散功率Pc Power Dissipation| 0.2W/200mW Description & Applications| Feature •medium speed switching resistor built-in type PNP transistor mini mold •resistor built-in type •complementary to FN1L4Z 描述与应用| 特点 •中速开关电阻内置型PNP晶体管小型模具 •电阻器内置型 •互补FN1L4Z的
