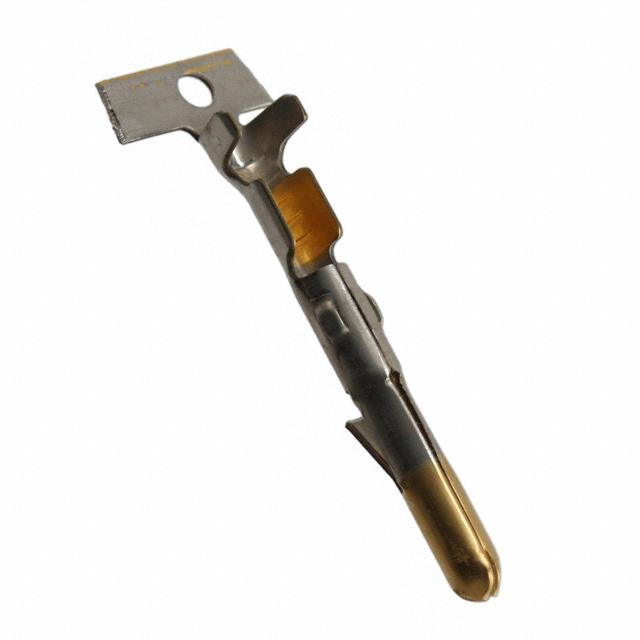

管脚和插座连接器 MNL PIN S/F 24-18 AU Reel of 8000
CMNL PIN 24-18 AUNIBR
Product Highlights
Contact
Contact Diameter = 2.13 mm
Packaging Method = Strip
Contact Type = Pin
Wire Range = 0.20-0.80² [24-18] mm [AWG]
得捷:
CONN PIN 18-24AWG CRIMP GOLD
贸泽:
管脚和插座连接器 MNL PIN S/F 24-18 AU Reel of 8000
艾睿:
Never worry about a poor connection with this 61116-5 connector contact from TE Connectivity. It has a straight body orientation. This device has a maximum current rating of 13 A. This has a Connector Headers and PCB Receptacles connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 20.45 mm long, 3.35 mm tall and 3.56 mm deep. Its wire is 18-24 AWG. It uses the crimp termination method.
Allied Electronics:
Commercial MATE-N-LOK PCB Conn Contact, Male, Crimp, Gold over Nickel Plating
安富利:
Contact PIN Crimp ST Cable Mount Strip
Chip1Stop:
Contact PIN Crimp ST Cable Mount Strip
Verical:
Contact PIN Crimp ST Cable Mount 18-24AWG T/R
Newark:
# AMP - TE CONNECTIVITY 61116-5 Contact, Commercial MATE-N-LOK Series, Pin, Crimp, 18 AWG, Gold Plated Contacts
MASTER:
Pin Contact - Gold - 18-24 AWG - Crimp Stamped.
Powell:
.200" Centerline, 250 V, 13 A max.
Online Components:
CMNL PIN 24-18 AUNIBR
Electro Sonic:
Pin Contact - Gold - 18-24 AWG - Crimp Stamped.
触点数 1
极性 Male
线规 18AWG ~ 24AWG
触点电镀 Gold
额定电流 13.0 A
额定电流Max 13 A
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压Max 250 VAC
长度 20.45 mm
宽度 3.56 mm
高度 3.35 mm
触点材质 Brass
材质 Brass
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
61116-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
60618-5 泰科 | 完全替代 | 61116-5和60618-5的区别 |
